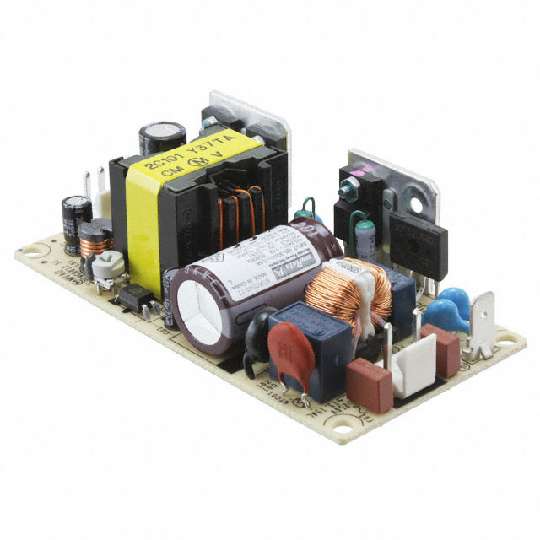

MURATA POWER SOLUTIONS MVAD040-12 开放式电源 交流/直流, 低型, 固定输出, 90 V, 264 V, 40 W, 12 V, 3.34 A
The is a 1-output 40W open-frame AC/DC Power Supply Converter utilizes advanced component and circuit technologies to deliver high efficiency. Designed for Medical, Telecom and Industrial applications to satisfy 1U height design considerations. It offers universal AC input and compliance to worldwide safety and EMC standards.
- .
- Compact high density
- .
- 89% High efficiency
- .
- Universal AC input
- .
- Low profile - 1U package
- .
- Convection-cooled operation up to 40W
- .
- Complies with 5000m altitude
- .
- Less than 0.3W no load input power
- .
- 2 x 4" standard footprint
额定功率 40 W
输出接口数 1
输入电压DC 120V ~ 300V
输出电压 12 V
输出电流 3.34 A
输出功率 40 W
隔离电压 3 kV
输入电压DC Max 300 V
输入电压DC Min 120 V
输入电压AC Max 264 v
输入电压AC Min 90 v
额定电流Max 0.9 A
输出电流Max 3.34 A
输入电流Min 0.9 A
输出功率Max 40 W
工作温度Max 50 ℃
工作温度Min -20 ℃
输入电压 90V ~ 264V
安装方式 Chassis
引脚数 6
宽度 2 in
高度 31.5 mm
工作温度 -20℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
制造应用 Power Management, Industrial, 电源管理, Medical, 通信与网络, Communications & Networking, 工业, 医用, ITE（商业），医疗
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
