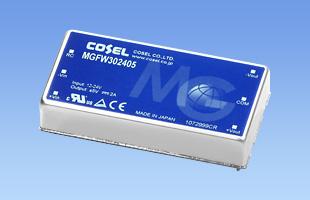

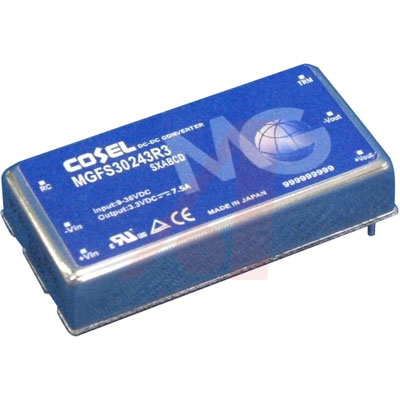

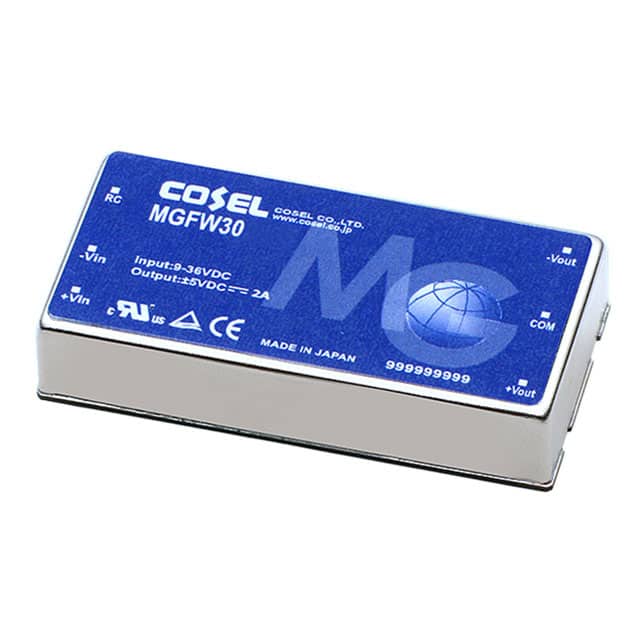

MGF 系列 30 W 双输出 ±12 或 + 24 V 隔离 DC/DC 电源
High Reliability — Field Failure Rate Less Than 0.001%
Low EMI — Shielded Die-Cast Housing Metal Case
Fully Regulated and 1500 VDC Isolation Between Input and Output
Internal Fuse Protection for Safety
Over Current Protection Circuitry
Wide Operating Temperature Range –40°C-85°C
Trim Function
UL, C-UL, TÜV, CE Safety Approvals
得捷:
DC DC CONVERTER +/-12V
欧时:
DC/DC Converter Isolated +-12V 1.25A 30W
贸泽:
隔离式DC/DC转换器 30W 12V/24V 1.25A Through Hole
艾睿:
Module DC-DC 24VIN 2-OUT 12V/-12V/24V 1.25A 30W 6-Pin
Allied Electronics:
Power Supply; DC-DC; 12V@1.25A; -12@1.25A; 9-36V In; Encapsulated; Thru Hole; MG Series
Chip1Stop:
Module DC-DC 2-OUT 12V/-12V/24V 1.25A 30W 6-Pin
Verical:
Module DC-DC 24VIN 2-OUT 12V/-12V/24V 1.25A 30W 6-Pin
CDI:
30W 24V to +12/-12V 4:1 Regulated 1x1 DC/DC Converter
输出接口数 2
输出电压 12 V
输出电流 1.25 A
输出功率 30 W
隔离电压 1.5 kV
输入电压Max 36 V
输入电压Min 9 V
输出电流Max 1.25A, 1.25A
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 9V ~ 36V
安装方式 Through Hole
引脚数 6
封装 DIP-6
长度 2 in
宽度 1 in
高度 0.39 in
封装 DIP-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 PB free
