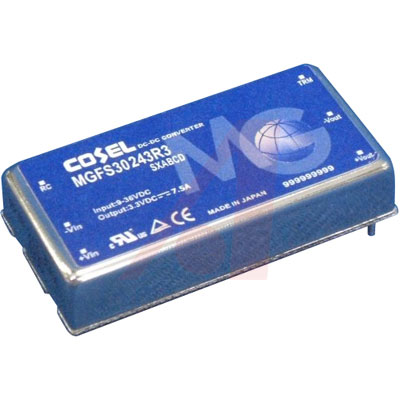

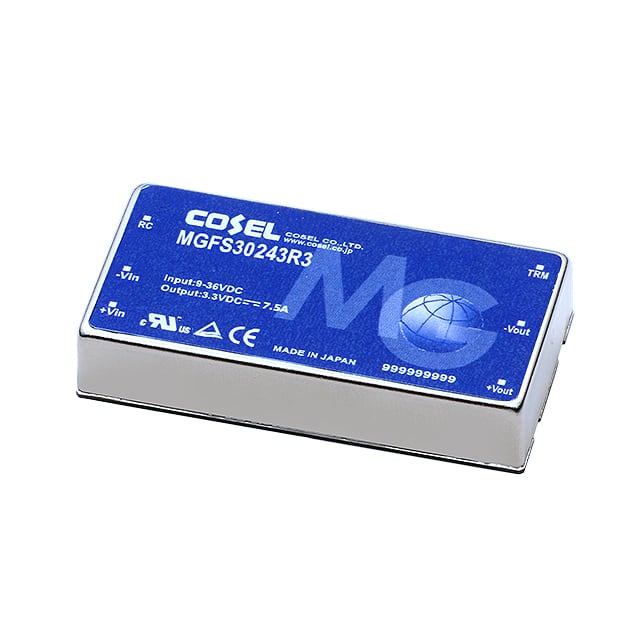

MGFS30 系列 30 W 单输出 12 V DC/DC 电源
High Reliability — Field Failure Rate Less Than 0.001%
Low EMI — Shielded Die-Cast Housing Metal Case
Fully Regulated and 1500 VDC Isolation Between Input and Output
Internal Fuse Protection for Safety
Over Current Protection Circuitry
Wide Operating Temperature Range –40°C-85°C
Trim Function
UL, C-UL, TÜV, CE Safety Approvals
得捷:
DC DC CONVERTER 12V
贸泽:
隔离式DC/DC转换器 30W 12V 2.5A Through Hole
艾睿:
Module DC-DC 48VIN 1-OUT 12V 2.5A 30W 6-Pin
Allied Electronics:
Power Supply; DC-DC; 12V@2.5A; 18-76V In; Encapsulated; Thru Hole; Switching; MG Series
Chip1Stop:
Module DC-DC 1-OUT 12V 2.5A 30W 6-Pin
Verical:
Module DC-DC 48VIN 1-OUT 12V 2.5A 30W 6-Pin
CDI:
30W 48V to 12V 4:1 Regulated 1x1 DC/DC Converter
输出接口数 1
输出电压 12 V
输出电流 2.5 A
输出功率 30 W
隔离电压 1.5 kV
输入电压Max 76 V
输入电压Min 18 V
输出电流Max 2.5 A
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 18V ~ 76V
安装方式 Through Hole
引脚数 6
封装 DIP-6
长度 2 in
宽度 1 in
高度 0.39 in
封装 DIP-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
