MENT1220A2451F01

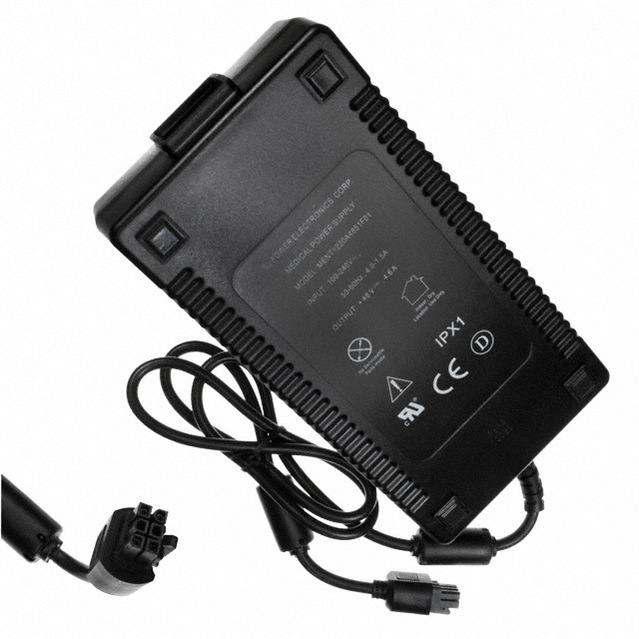

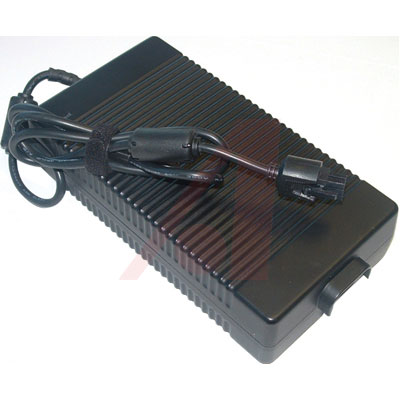

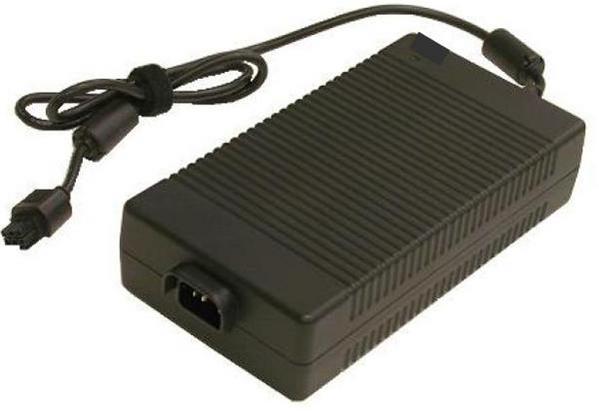

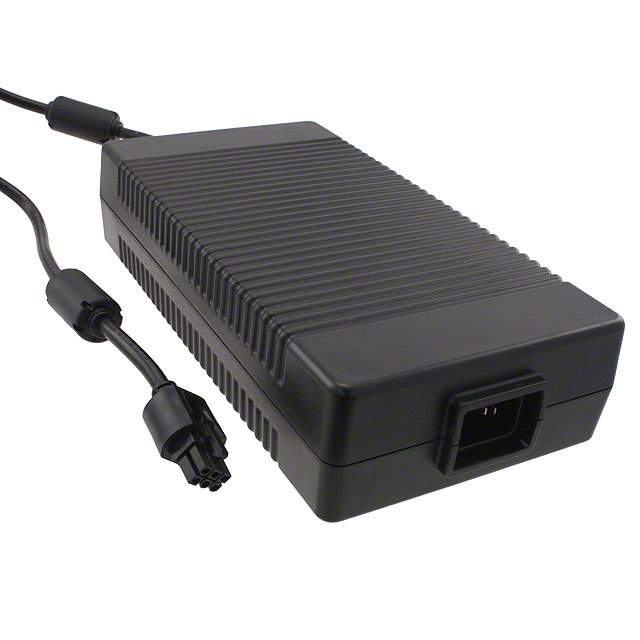

AC-DC DESKTOP ADAPTER 24V 220W

Ault"s MENT 1220 series comprises single output, desktop-style power supplies with an output range of up to 220 W. This increase in power will allow whole segments of the electronics industry previously unable to use external power, to now dramatically reduce the size of their equipment by changing from an internal power supply to an external power supply. The MENT1220 series complies with Environmental Protection Agency EPA Energy Star Level IV and meets all relevant safety and EMC standards including EN60601-1-2. Ault MENT 1220 units are available in three regulated voltage outputs — 24, 32 and 48 V. Measuring 8.0 × 4.2 × 1.8", 203 × 107 × 46 mm, the MENT1220 Series units are protected against over voltage, over current and overheating as well as short circuit. Leakage current is <300μA and the efficiency for all models is close to 90%. All models feature a universal input of 100 to 240Vac and are packaged in a non-vented IPX1rated, impact-resistant, polycarbonate enclosure with a ribbed surface to improve cooling.

**Features:**

* 100-240 VAC Universal Input Range

* Single Output Model Up to 220 W

* Desktop Style/Non-Vented Case — No Internal Fan

* Efficiency Level IV

* Certified to Medical UL/IEC/EN60601-1 and ITE UL/IEC/EN60950-1

* IPX1 Rated Enclosure+

* Class I and Class II Input Versions Available

* 3-Year Factory Warranty
