ME60A 替代 MENB1060 60 W 48 V Level VI 输入 插座 桌面 适配器

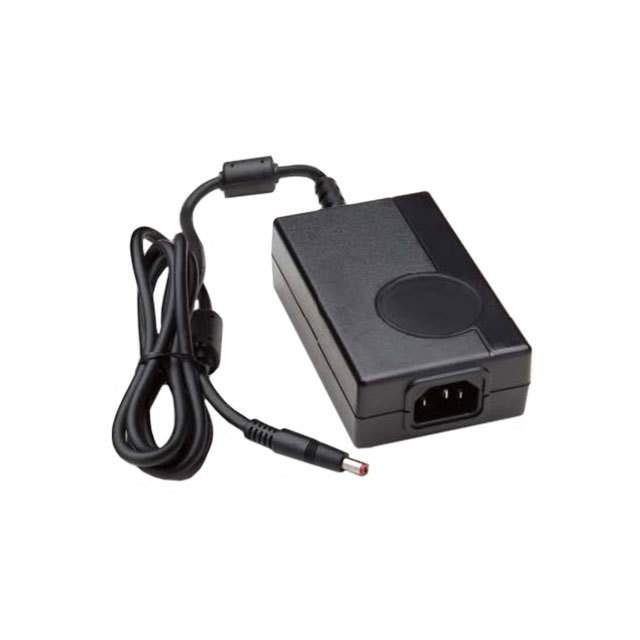

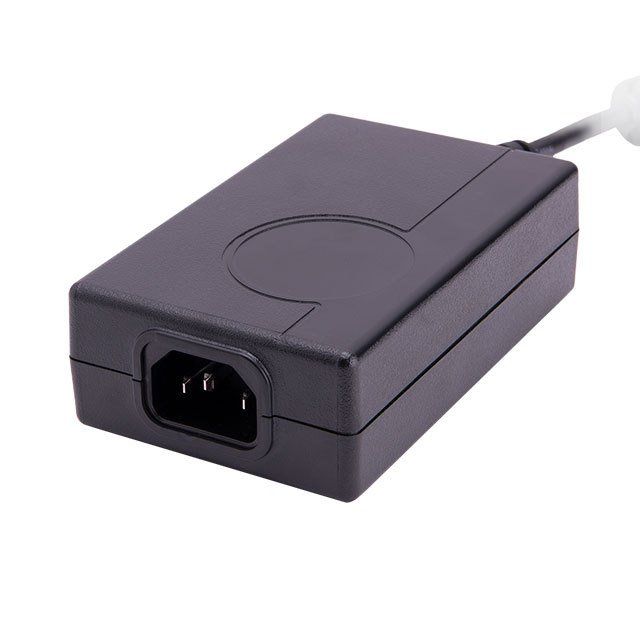

A high performance AC to DC external power supply family designed for medical applications. The ME60A Medical Series low
power external AC-DC power supplies are approved to safety EN/IEC/UL60601-1, 3rd edition and EN/IEC/UL60601-1-11:2010
for Home Healthcare non-hospital use applications with and isolation levels which satisfy the 2 MOPP requirements and
designed to UL/EN/IEC60601-1-2, 4th edition for EMC- .
. The ME60A Series models will operate at universal input range of 90 to
264Vac over the wide temperature range of -20°C to +50°C, delivering full rated output power up to +40°C and applicable
output power derating at 50°C. These models are available in desktop versions, include an IP22 rating per IEC60529 for the
enclosure, and the output cable can be terminated at a variety of output connectors
Features:- .
- *
**Meets UL/EN/IEC60601-1-2, 4th edition for EMC*
Approved to EN/IEC/UL60601-1, 3rd edition
with isolation levels which satisfy the 2 MOPP
requirements
Meets DoE Efficiency Level VI Requirements
No load input power
Average Efficiency
Up to 60W of AC-DC Power
Universal Input 90-264Vac Input Range
Desktop Style Package
Meets EN55011/CISPR11, FCC Part 15.109
Class B Conducted & Radiated Emissions, with
6db margin
E-cap life of >7 years
3 Year Warranty
IP22 Rated Enclosure
