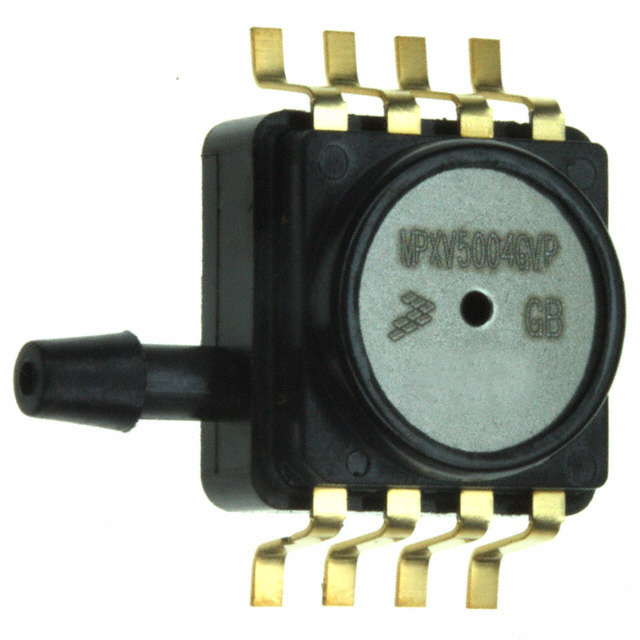

MPXV5004GVP

Pressure Sensor 1V to 5V 0kPa to 3.92kPa Vacuum 8Pin SOP Tray

Overview

The MPxx5004 family MPXV5004G and MPVZ5004G series is state-of-the-art monolithic silicon pressure sensors. They combine advanced micromachining techniques, thin-film metallization and bipolar processing to provide an accurate; high-level analog output signal that is proportional to the applied pressure.

MoreLess

## Features

* Temperature compensated over 10° to 60°C

* Available in gauge surface mount SMT or through-hole DIP configurations

* Durable thermoplastic PPS package

* MPVZ5004G specific features:

* Designed for the appliance, consumer, health care and industrial markets

* The axial port has been modified to accommodate industrial grade tubing

* 1.5 percent maximum error for 0 to 100 mm H2O over +10° to +60°C with auto zero

* 2.5 percent maximum error for 100 to 400 mm H2O over +10° to +60°C with auto zero

* 6.25 percent maximum error for 0 to 400 mm H2O over +10° to +60°C without auto zero
