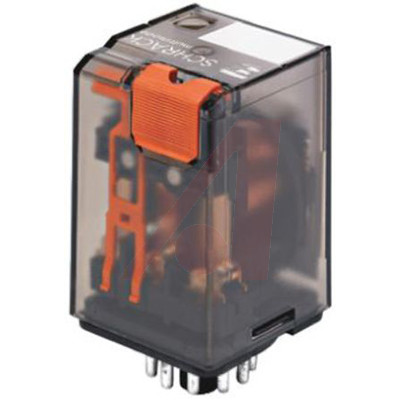

功率继电器, 多模, 3PDT, 115 VAC, 10 A, MT Series, 面板安装, 非闭锁
* Operating Temperature: –20°C to +80°C
* Contact Rating: 6 A @ 125 VAC, 3 A @ 250 VAC
* Insulation Resistance: 1000 Megohms Min. @ 500 VDC Min. for 1 Minute
* Dielectric Strength: 1500 VAC
e络盟:
功率继电器, 多模, 3PDT, 115 VAC, 10 A, MT Series, 面板安装, 非闭锁
艾睿:
Electromechanical Relay 115VAC 2KOhm 20A 3PDT 35.5x35.6x57mm Plug-In General Purpose Relay
Allied Electronics:
RELAY; MULTIMODE; 115 VAC; 3 CO CONTACTS; 11 PIN; W/ LED AND TEST BUTTON
安富利:
Electromechanical Relay 3PDT 20A 115VAC 2KOhm Socket
Chip1Stop:
Electromechanical Relay 115VAC 2KOhm 20A 3PDT35.5x35.6x57mm Plug-In General Purpose Relay
Verical:
Electromechanical Relay 115VAC 2KOhm 20A 3PDT 35.5x35.6x57mm Plug-In General Purpose Relay
MASTER:
Power Relay 115VAC 10A 3PDT35.5x35.6x57mm Socket
Electro Sonic:
Power Relay 115VAC 10A 3PDT35.5x35.6x57mm Socket
额定电压AC 400 V
额定电流 10 A
触点类型 3PDT
跌落电压 34.5 V
触点额定电流 20 A
线圈电压 115 VAC
线圈电压AC 115 V
线圈电阻 2 kΩ
额定电流Max 20 A
额定功率Max 2.5 KVA
工作温度Max 50 ℃
工作温度Min -40 ℃
安装方式 Plug In
引脚数 11
长度 35.5 mm
宽度 35.6 mm
高度 57 mm
触点材质 Silver Nickel
工作温度 -40℃ ~ 50℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Not Applicable
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536490075
