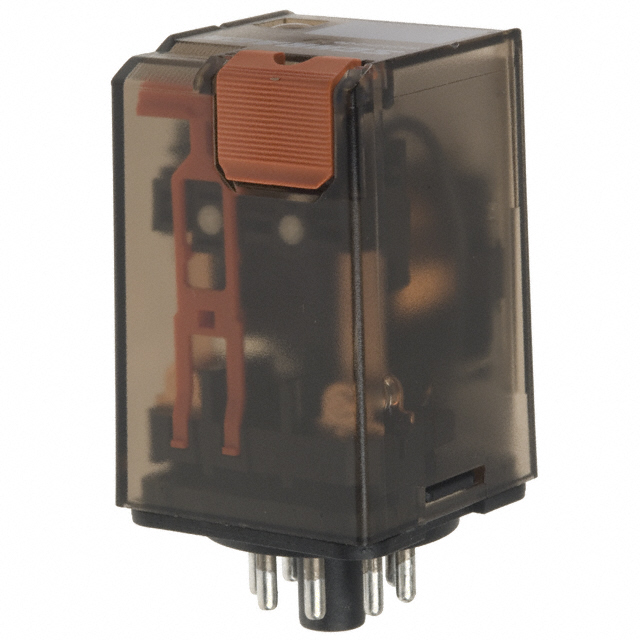

Electromechanical Relay 220VDC 40KΩ 20A 3PDT35.5x35.6x57mm Plug-In General Purpose Relay
**Mechanical engineering, plant control
**VREG.-Nr. 6182, ZE214025
* 2 / 3 pole 10 A, 2 CO or 3 CO contacts
* DC and AC coils
* Mechanical indicator as standard
* Electrical indicator
* New test system with front operated finger protected
push-to-test button and integral locking test tab
* White write on panel
* VREG.-Nr. 6182, ZE214025
艾睿:
Electromechanical Relay 220VDC 40KOhm 20A 3PDT35.5x35.6x57mm Plug-In General Purpose Relay
Allied Electronics:
Shrack; RELAY, MULTIMODE, 220 VDC, 3 COCONTACTS, 11 PIN, W/ TEST BUTTON
Chip1Stop:
Electromechanical Relay 220VDC 40KOhm 20A 3PDT 35.5x35.6x57mm Plug-In General Purpose Relay
Verical:
Electromechanical Relay 220VDC 40KOhm 20A 3PDT 35.5x35.6x57mm Plug-In General Purpose Relay
MASTER:
Electromechanical Relay 220VDC 40KOhm 20A 3PDT35.5x35.6x57mm Plug-In General Purpose Relay
Online Components:
Electromechanical Relay 220VDC 40KOhm 20A 3PDT35.5x35.6x57mm Plug-In General Purpose Relay
Electro Sonic:
Electromechanical Relay 220VDC 40KOhm 20A 3PDT35.5x35.6x57mm Plug-In General Purpose Relay
额定电压AC 400 V
额定电流 10 A
功耗 1.2 W
触点额定电流 20 A
线圈电压 220 V
线圈电流 5.5 mA
线圈电阻 40 KΩ
额定电流Max 20 A
线圈电压DC 220 V
额定功率Max 2.5 kVA
工作温度Max 60 ℃
工作温度Min -40 ℃
额定电压AC Max 400 V
引脚数 11
长度 35.5 mm
宽度 35.6 mm
高度 57 mm
触点材质 Silver Nickel
工作温度 -40℃ ~ 60℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536490075
