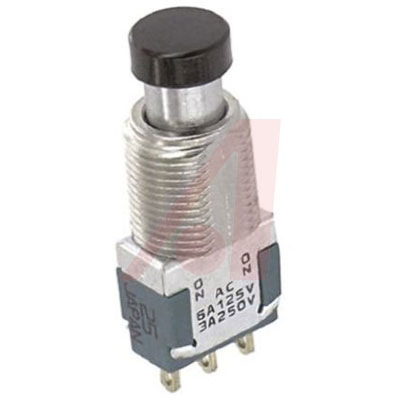

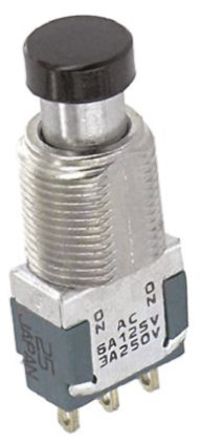

MPG106D

TE Connectivity - MPG 系列开关TE Connectivity MPG series of miniature Push Button switches are available in a choice of SPDT or DPDT contact configurations with momentary switching function and solder terminals. MPG switches are designed to be panel mounted. They have a contact resistance less than 10mΩ and an insulation resistance greater than 1000MΩ. They are epoxy sealed with a flux proof construction. Accessories for the MPG miniature Push Button switches include a brass chromium-plated bezel and a 15mm diameter black actuator button, see stock numbers 134-2462 and 7830053 respectively.瞬时或交替切换 125V 交流时最大开关额定值为 6A，250V 交流时 3A 银包铜镀金触点 M6 衬套 焊接端子触点电阻 介电强度 1500 V 交流（1 分钟） 绝缘电阻最小 1000MΩ 机械寿命 >50,000 次操作 工作温度范围：-20 至 +80°C ### 注Actuator button is not supplied with the switch and must be ordered separately. For a suitable 15mm black button see stock number 7830053 Momentary switches have the momentary state displayed in brackets, e.g. on - on.### 面板安装

- MPG 系列

TE Connectivity MPG series of miniature Push Button switches are available in a choice of SPDT or DPDT contact configurations with momentary switching function and solder terminals.

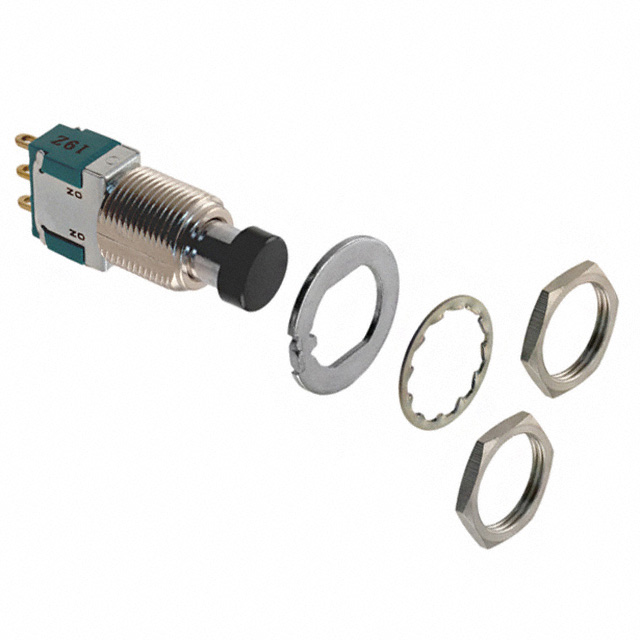

MPG switches are designed to be panel mounted. They have a contact resistance less than 10mΩ and an insulation resistance greater than 1000MΩ. They are epoxy sealed with a flux proof construction.

Accessories for the MPG miniature Push Button switches include a brass chromium-plated bezel and a 15mm diameter black actuator button, see stock numbers 134-2462 and 7830053 respectively.

瞬时或交替切换

125V 交流时最大开关额定值为 6A，250V 交流时 3A

银包铜镀金触点

M6 衬套

焊接端子触点电阻

介电强度 1500 V 交流（1 分钟）

绝缘电阻最小 1000MΩ

机械寿命 >50,000 次操作

工作温度范围：-20 至 +80°C

### 注

Actuator button is not supplied with the switch and must be ordered separately. For a suitable 15mm black button see stock number 7830053

Momentary switches have the momentary state displayed in brackets, e.g. on - on.
