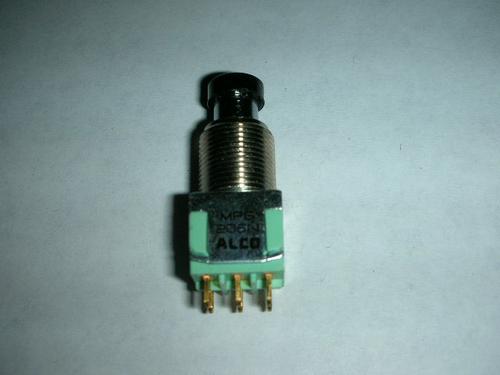

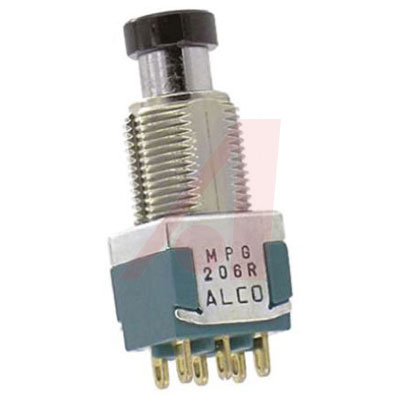

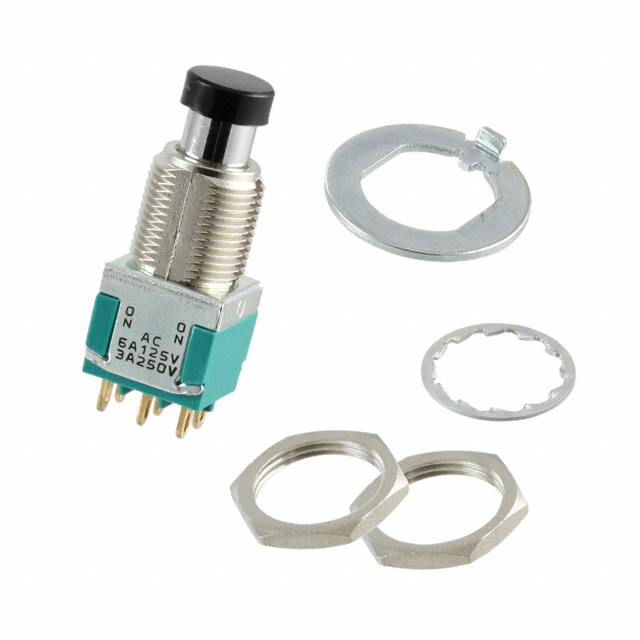

Alcoswitch; Switch, Pushbutton; 6A 125VAC; DPDT; Solder Lug; 0.468in. bushing mnt
**Features**
* 1⁄4-40 Threaded Bushing Diameter** MPA/MPE/MPG Material Specifications**
* Contacts: Silver Clad Copper with Gold Flash
* Case Material: Thermoset
* Actuator Material: Nickel-Plated Copper Alloy
* Terminals: Copper with Gold Flash
* Terminal Seal: Molded In ** MPS Material Specifications**
* Contacts: Silver
* Case Material: Epoxy Resin
* Actuator Material: Copper Alloy, Nickel-Plated
* Terminals: Silver
* Terminal Seal: Epoxy
触点电镀 Gold Flash over Silver
额定电压DC 28 V
接触器类型 Button
额定电压AC 125 V
额定电流 6 A
方向 Vertical
触点类型 DPST
触点额定电流 6.00 A
额定电流Max 6A @125VAC
工作温度Max 80 ℃
工作温度Min -20 ℃
额定电压 125 VAC
接触电阻Max 10 mΩ
安装方式 Panel
封装 Epoxy Resin
长度 13 mm
宽度 13 mm
高度 35.67 mm
封装 Epoxy Resin
触点材质 Copper
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536509065
