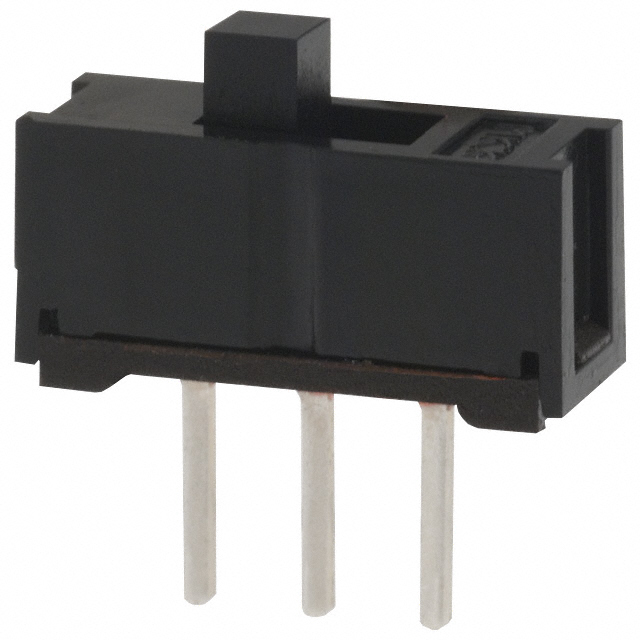

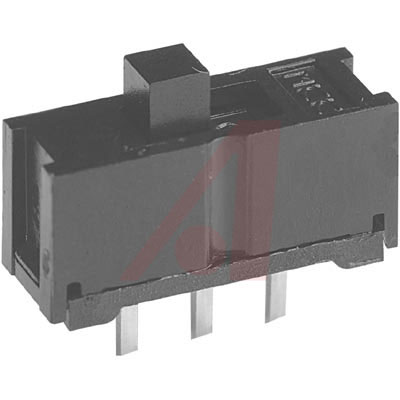

Switch Slide SPDT Top Slide 0.1A 30VAC 30VDC PC Pins Thru-Hole
Slide Switch, SPDT Contact Form, PC Termination, 30 VDC Voltage Rating
* RoHS Compliant, ELV Compliant
Polyester actuator material. Silver contact plating.
得捷:
SWITCH SLIDE SPDT 100MA 30V
艾睿:
The best way to turn on or off your application is by using this MMS12 slide switch from TE Connectivity. This device has a maximum current rating of 0.1 A @ 30VAC 30VDC. It has a SPDT configuration. This slide switch has a minimum operating temperature of -10 °C and a maximum of 60 °C. The MMS12 slide switch has a PC pin termination style. The maximum AC voltage rating is 30 VAC and the maximum DC voltage rating is 30 VDC. This product is 11.5 mm long, 7.53 mm tall and 4 mm deep.
Allied Electronics:
Switch, Slide; SPDT; 100 mA @ 30 VDC; 30 VDC; Copper Alloy; PC Terminal; 2
安富利:
Switch Slide SPDT Top Slide 0.1A 30VAC 30VDC PC Pins Thru-Hole
Chip1Stop:
Switch Slide SPDT Top Slide 0.1A 30VAC 30VDC PC Pins Thru-Hole
Verical:
Switch Slide SPDT Top Slide 0.1A 30VAC 30VDC PC Pins Thru-Hole
MASTER:
Switch Slide SPDT Top Slide 0.1A 30VAC 30VDC PC Pins Thru-Hole
触点电镀 Silver
额定电压DC 30 V
接触器类型 Standard
额定电流 100mA DC
排数 1
方向 Vertical
触点类型 SPDT
易燃性等级 UL 94 HB
针脚数 2
额定电流Max 0.1A @30VAC, 30VDC
工作温度Max 60 ℃
工作温度Min -10 ℃
额定电压 30 VDC
额定电压DC Max 30 V
额定电压AC Max 30 V
接触电阻Max 30 mΩ
安装方式 Through Hole
长度 11.5 mm
宽度 4 mm
高度 7.53 mm
触点材质 Copper Alloy
工作温度 -20℃ ~ 60℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536509065
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MMS12 TE Connectivity 泰科 | 当前型号 | 当前型号 |
SLS121PC04 泰科 | 功能相似 | MMS12和SLS121PC04的区别 |
