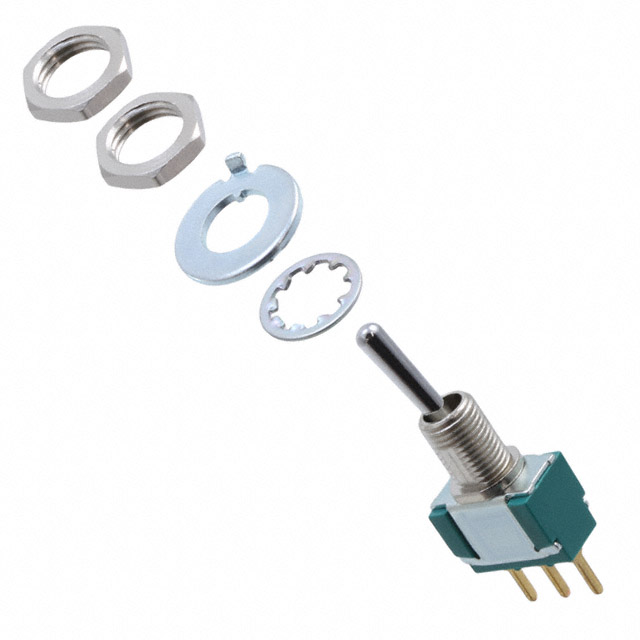

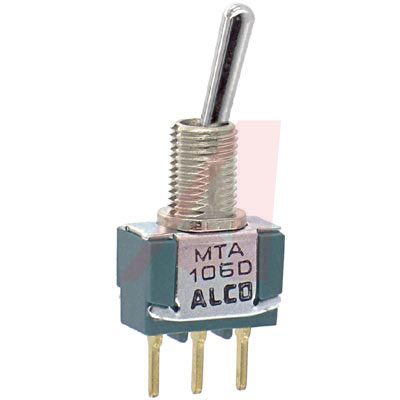

MTA106DPC

Switch, Toggle; Vert. PC Mnt; 6A; 125VAC; SPDT; On-None-On; PC Tail

* Operating Temperature: –20°C to +80°C

* Contact Rating: 6 A @ 125 VAC, 3 A @ 250 VAC

* Insulation Resistance: 1000 Megohms Min. @ 500 VDC Min. for 1 Minute

* Dielectric Strength: 1500 VAC

艾睿:
The MTA106DPC toggle switch from TE Connectivity allows you to control the status of your project. This device has a maximum current rating of 6 A @ 125VAC. It has a SPDT configuration. This toggle switch has an operating temperature range of -20 °C to 80 °C. The MTA106DPC toggle switch has a PC pin termination style. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 28 VDC. This product is 13 mm long, 30.09 mm tall and 8 mm deep.

Allied Electronics:
Switch, Toggle; Vert. PC Mnt; 6 A; 125 VAC; SPDT; On-None-On; PC Tail

安富利:
Switch Toggle ON None ON SPDT Long Bat Toggle PC Pins 6A 250VAC 28VDC PC Mount with Threads

Chip1Stop:
Switch Toggle ON None ON SPDT Long Bat Lever PC Pins 6A 250VAC 28VDC PC Mount with Threads

Verical:
Switch Toggle ON None ON SPDT Long Bat Lever PC Pins 6A 250VAC 28VDC PC Mount with Threads

MASTER:
Switch Toggle ON None ON SPDT Long Bat Lever PC Pins 6A 250VAC 28VDC PC Mount with Threads
