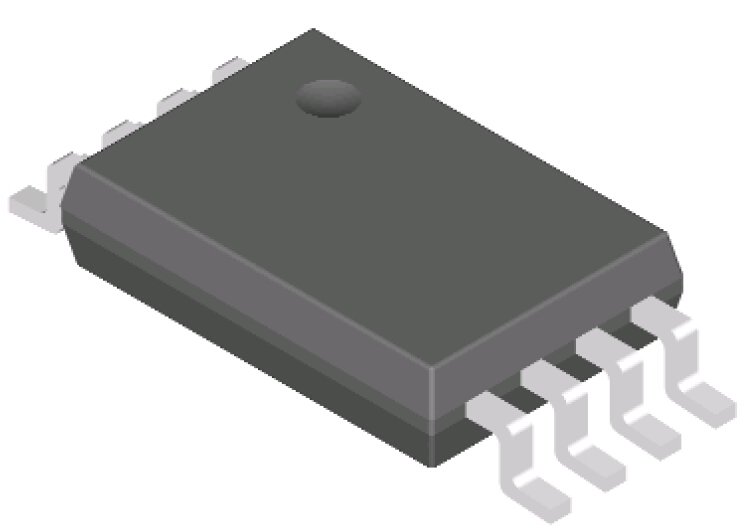

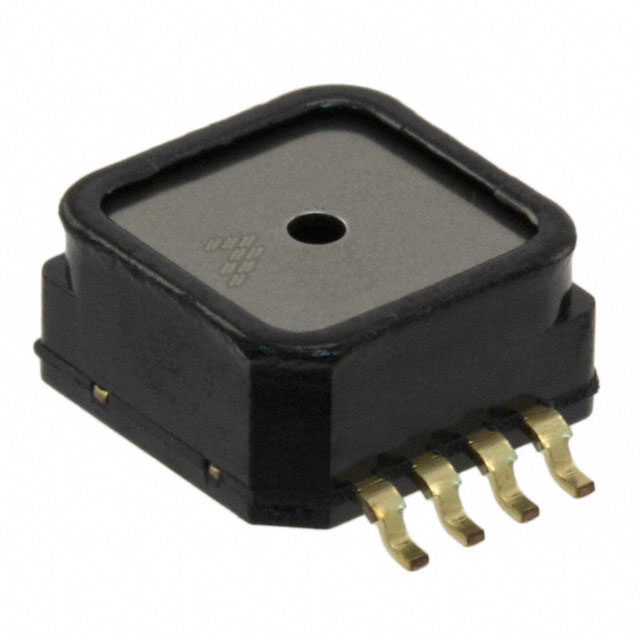

MPXH6101A6U

Pressure Sensor 0.2V to 5V 15KPa to 102KPa Absolute 8Pin SSOP Rail

Overview

The ® MPX4101A series Manifold Absolute Pressure MAP sensor for engine control is designed to sense absolute air pressure within the intake manifold. This measurement can be used to compute the amount of fuel required for each cylinder. The small form factor and high reliability of on–chip integration makes the NXP MAP sensor a logical and economical choice for automotive system designers.

MoreLess

## Features

* 1.72% Maximum Error Over 0° to 85°C

* Specifically Designed for Intake Manifold Absolute Pressure Sensing in Engine Control Systems

* Ideally Suited for Microprocessor Interfacing

* Temperature Compensated Over –40°C to +125°C

* Durable Epoxy Unibody Element or Surface Mount Package

* Also Ideal for Non–Automotive Applications
