MAX9709ETN+

音频放大器 25W/50W, Filterless, Spread-Spectrum, Stereo/Mono, Class D Amplifier

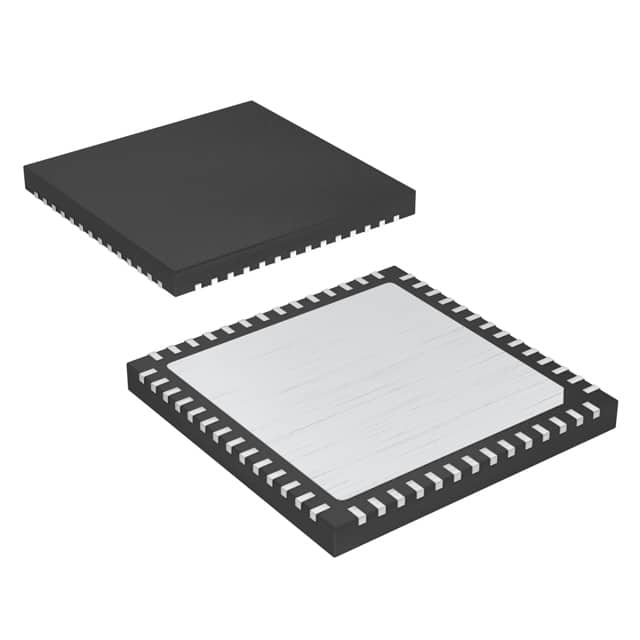

放大器 IC 1-通道（单声道）或 2-通道（立体声） D 类 56-TQFN-EP（8x8）

得捷:
25W/50W, FILTERLESS, SPREAD-SPEC

贸泽:
音频放大器 25W/50W, Filterless, Spread-Spectrum, Stereo/Mono, Class D Amplifier

安富利:
The MAX9709 stereo/mono, Class D audio power amplifier delivers up to 2 x 25W into an 8Ω stereo mode and 1 x 50W into a 4Ω load in mono mode while offering up to 87% efficiency. The MAX9709 provides Class AB amplifier performance with the benefits of Class D efficiency, eliminating the need for a bulky heatsink and conserving power. The MAX9709 operates from a single +10V to +22V supply, driving the load in a BTL configuration.The MAX9709 offers two modulation schemes: a fixed-frequency modulation FFM mode, and a spread-spectrum modulation SSM mode that reduces EMI-radiated emissions. The MAX9709 can be synchronized to an external clock from 600kHz to 1.2MHz. A synchronized output allows multiple units to be cascaded in the system.Features include fully differential inputs, comprehensive click-and-pop suppression, and four selectable-gain settings 22dB, 25dB, 29.5dB, and 36dB. A pin-programmable thermal flag provides seven different thermal warning thresholds. Short-circuit and thermal-overload protection prevent the device from being damaged during a fault condition.The MAX9709 is available in a 56-pin TQFN 8mm x 8mm x 0.8mm package, and is specified over the extended -40°C to +85°C temperature range.

Chip1Stop:
Audio Amp Speaker 1-CH Mono/2-CH Stereo 50W Class-D 56-Pin TQFN EP
