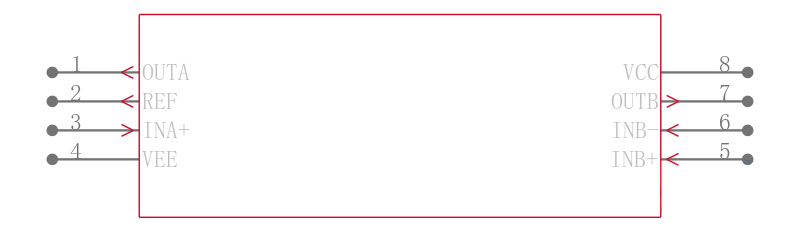

MAX9042BEUA

微功耗，单电源， UCSP / SOT23封装比较器+精密电压基准IC Micropower, Single-Supply, UCSP/SOT23 Comparator + Precision Reference ICs

General Description

The MAX9039–MAX9043 and MAX9050–MAX9053 feature combinations of low-power comparators and precision voltage references. Their operating voltage range makes them ideal for both 3V and 5V systems. The MAX9039/MAX9040/MAX9041/MAX9050/MAX9051 have a single comparator and reference consuming only 40µA of supply current. The MAX9042/MAX9043/MAX9052/MAX9053 have dual comparators and one reference, and consume only 55µA of supply current. Low-voltage operation and low supply current make these devices ideal for battery-operated systems.

Features

♦Comparator + Precision Reference in UCSP/SOT23

♦2.5V to 5.5V Single-Supply Operation MAX9039–MAX9043

♦Low Supply Current MAX9039/MAX9040/MAX9041/MAX9050/MAX9051

  40µA Quiescent

  50µA with 100kHz Switching

♦400ns Propagation Delay

♦Rail-to-Rail Inputs

♦Rail-to-Rail Output Stage Sinks and Sources 8mA

♦Internal ±3mV Hysteresis

♦Voltage Reference Offers:

  ±0.4% max Initial Accuracy A grade

  6ppm/°C typ Temperature Coefficient A grade

  Stable for 0 to 4.7nF Capacitive Loads

Applications

Precision Battery

Management

Window Comparators

IR Receivers

Level Translators

Digital Line Receivers
