MIC5255-2.8YM5

150mA Low Noise uCap LDOLead Free

General Description

The MIC5255 is an efficient, precise CMOS voltage regulator optimized for ultra-low-noise applications. It offers 1% initial accuracy, extremely-low dropout voltage 135mV at 150mA and low ground current typically 90µA. The MIC5255 provides a very-low-noise output, ideal for RF applications where a clean voltage source is required. A noise bypass pin is also available for further reduction of output noise.

Features

• Input voltage range: 2.7V to 6.0V

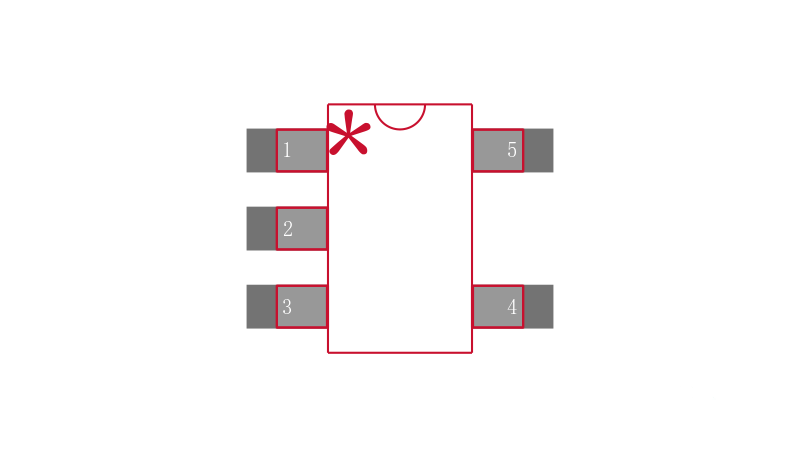

• Thin SOT package: 1mm height SOT-23-5

• Ultra-low output noise: 30µVrms

• Stability with ceramic output capacitors

• Ultra-low dropout: 135mV @ 150mA

• High output accuracy:

– 1.0% initial accuracy

– 2.0% over temperature

• Low quiescent current: 90µA

• Tight load and line regulation

• TTL-Logic-controlled enable input

• “Zero” off-mode current

• Thermal shutdown and current limit protection

Applications

• Cellular phones and pagers

• Cellular accessories

• Battery-powered equipment

• Laptop, notebook, and palmtop computers

• Consumer/personal electronics
