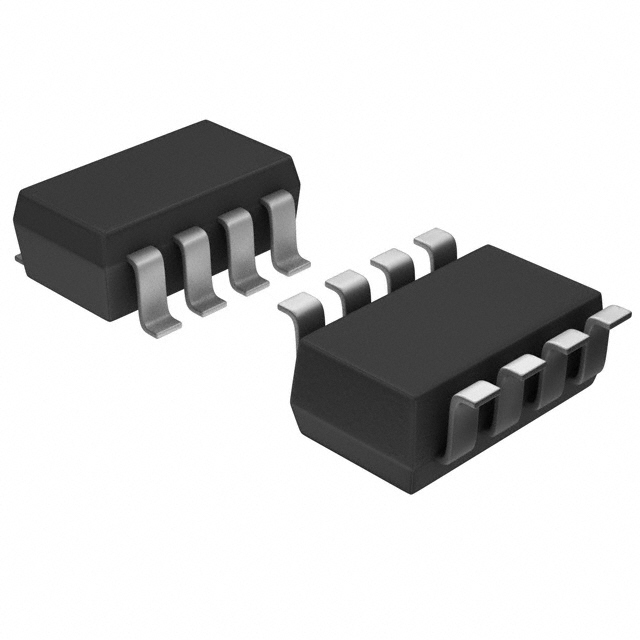

IC COMPARATOR R-R SOT23-8
General Description
The MAX985/MAX986/MAX989/MAX990/MAX993/MAX994 single/dual/quad micropower comparators feature low-voltage operation and rail-to-rail inputs and outputs. Their operating voltages range from 2.5V to 5.5V, making them ideal for both 3V and 5V systems. These comparators also operate with ±1.25V to ±2.75V dual supplies. They consume only 11µA of supply current while achieving a 300ns propagation delay.
Features
♦ 11µA Quiescent Supply Current
♦ 2.5V to 5.5V Single-Supply Operation
♦ Common-Mode Input Voltage Range Extends 250mV Beyond the Rails
♦ 300ns Propagation Delay
♦ Push-Pull Output Stage Sinks and Sources 8mA Current MAX985/MAX989/MAX993
♦ Open-Drain Output Voltage Extends Beyond VCC MAX986/MAX990/MAX994
♦ Unique Output Stage Reduces Output Switching Current, Minimizing Overall Power Consumption
♦ 80µA Supply Current at 1MHz Switching Frequency
♦ No Phase Reversal for Overdriven Inputs
♦ Available in Space-Saving Packages:
UCSP MAX985
SOT23 MAX985/MAX986/MAX989/MAX990
µMAX® MAX989/MAX990
Applications
Portable/Battery Powered Systems
Mobile Communications
Zero-Crossing Detectors
Window Comparators
Level Translators
Threshold Detectors/Discriminators
Ground/Supply-Sensing Applications
IR Receivers
Digital Line Receivers
