MAX306EWI概述

高精度, 16通道/双8通道,高性能, CMOS模拟多路复用器 Precision, 16-Channel/Dual 8-Channel, High-Performance, CMOS Analog Multiplexers

General Description

The MAX306/MAX307 precision, monolithic, CMOS analog multiplexers muxes offer low on-resistance less than 100Ω, which is matched to within 5Ω between channels and remains flat over the specified analog signal range 7Ω, max. They also offer low leak age over temperature INOOFFless than 2.5nA at +85°C and fast switching speeds tTRANSless than 250ns. The MAX306 is a single-ended 1-of-16 device, and the MAX307 is a differential 2-of-8 device.

Features

♦Guaranteed On-Resistance Match Between Channels, <5ΩMax

♦Low On-Resistance, <100ΩMax

♦Guaranteed Flat On-Resistance over Specified Signal Range, 7ΩMax

♦Guaranteed Charge Injection, <10pC

♦INOOFFLeakage <2.5nA at +85°C

♦ICOMOFFLeakage <20nA at +85°C

♦ESD Protection >2000V

♦Plug-In Upgrade for Industry-Standard DG406/DG407/DG506A/DG507A

♦Single-Supply Operation +5V to +30V

  Bipolar-Supply Operation ±4.5V to ±20V

♦Low Power Consumption, <1.25mW

♦Rail-to-Rail Signal Handling

♦TTL/CMOS-Logic Compatible

Applications

Sample-and-Hold

Circuits

Test Equipment

Heads-Up Displays

Guidance and Control Systems

Military Radios

Communications Systems

Battery-Operated Systems

PBX, PABX

Audio Signal Routing

MAX306EWI中文资料参数规格
技术参数

供电电流 75.0 µA

电路数 1

通道数 16

耗散功率 1000 mW

工作温度Max 85 ℃

工作温度Min 40 ℃

耗散功率Max 1000 mW

电源电压Max 30 V

电源电压Min 5 V

封装参数

安装方式 Surface Mount

引脚数 28

封装 SOIC-16

外形尺寸

长度 18.1 mm

宽度 7.6 mm

高度 2.35 mm

封装 SOIC-16

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Unknown

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

MAX306EWI引脚图与封装图

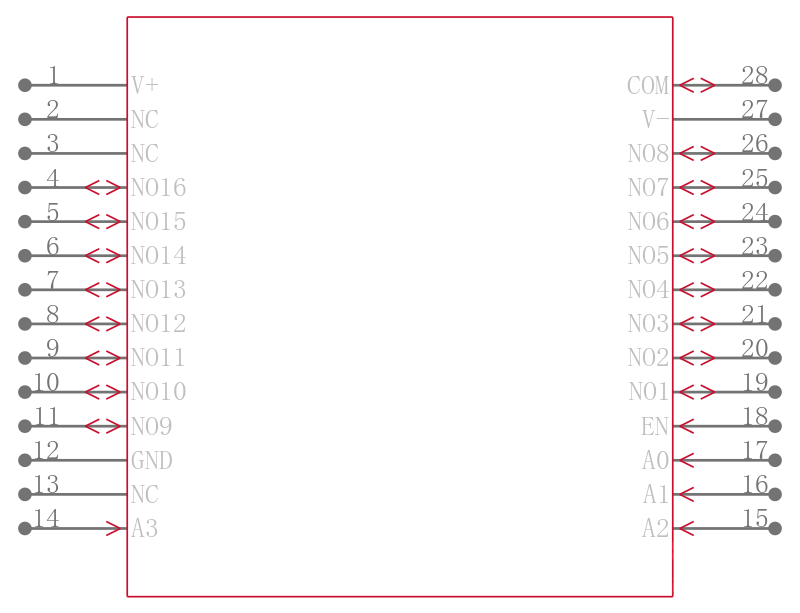

MAX306EWI引脚图

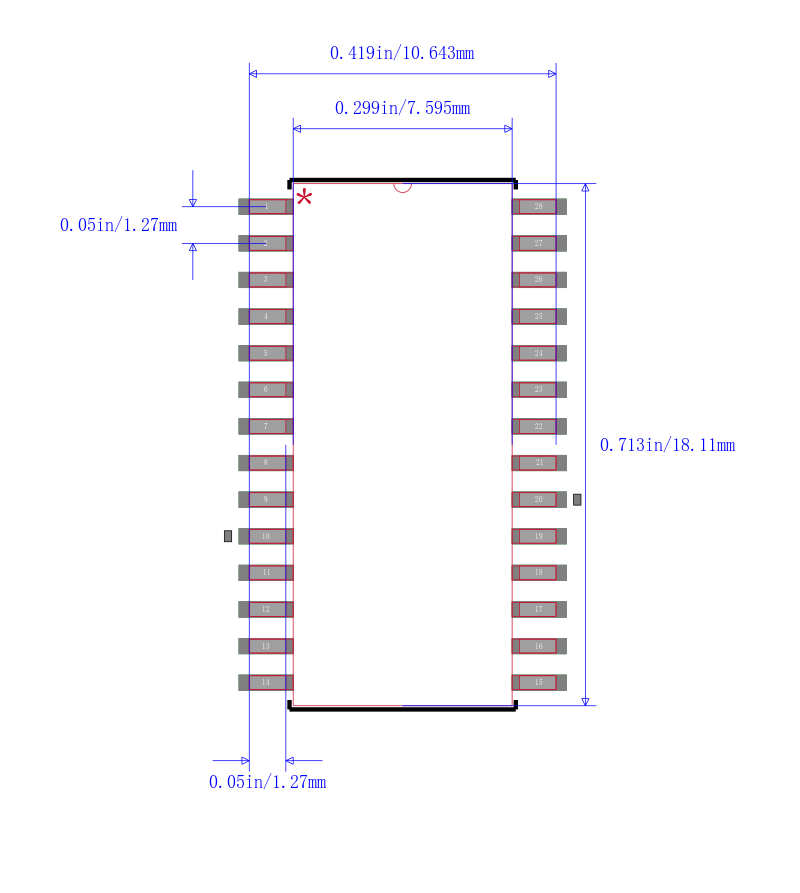

MAX306EWI封装图
MAX306EWI封装焊盘图
在线购买MAX306EWI
型号: MAX306EWI
描述:高精度, 16通道/双8通道,高性能, CMOS模拟多路复用器 Precision, 16-Channel/Dual 8-Channel, High-Performance, CMOS Analog Multiplexers
替代型号MAX306EWI
型号/品牌 代替类型 替代型号对比

MAX306EWI

Maxim Integrated 美信

当前型号

当前型号

MAX306EWI-T

美信

完全替代

MAX306EWI和MAX306EWI-T的区别

MPC506AU

德州仪器

功能相似

MAX306EWI和MPC506AU的区别

MAX306CWI+

美信

功能相似

MAX306EWI和MAX306CWI+的区别
