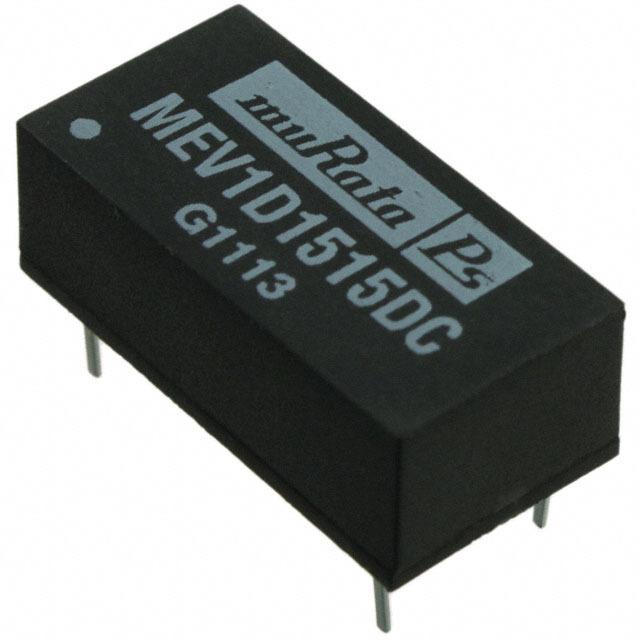

Module DC-DC 15Vin 2Out 15V/-15V 0.033A/-0.033A 1W 6Pin DIP Tube
Isolated Module DC DC Converter 2 Output 15V -15V 33mA, 33mA 13.5V - 16.5V Input
得捷:
DC DC CONVERTER +/-15V 1W
艾睿:
Provide the ability to switch between voltages by using this step down MEV1D1515DC DC to DC converter and switching regulator module. It has a voltage of 15|-15 V. This part has a temperature range of -40 °C to 85 °C. This device comes in tube packaging.
安富利:
Module DC-DC 2-OUT 15V/-15V 0.033A/-0.033A 1W 6-Pin DIP Tube
Verical:
Module DC-DC 15VIN 2-OUT 15V/-15V 0.033A/-0.033A 1W 6-Pin DIP Tube
Newark:
# MURATA POWER SOLUTIONS MEV1D1515DC Isolated Board Mount DC/DC Converter, 3kV Isolation, Fixed, 2 Output, 13.5 V, 16.5 V, 1 W, 15 V
额定功率 1 W
输出接口数 2
输出电压 ±15 V
输出功率 1 W
隔离电压 3 kV
输入电压Max 16.5 V
输入电压Min 13.5 V
输入电压DC Max 16.5 V
输入电压DC Min 13.5 v
输出电流Max 33mA, 33mA
输出功率Max 1 W
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 15 V
安装方式 Through Hole
引脚数 6
封装 DIP-14
宽度 10 mm
高度 7 mm
封装 DIP-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
