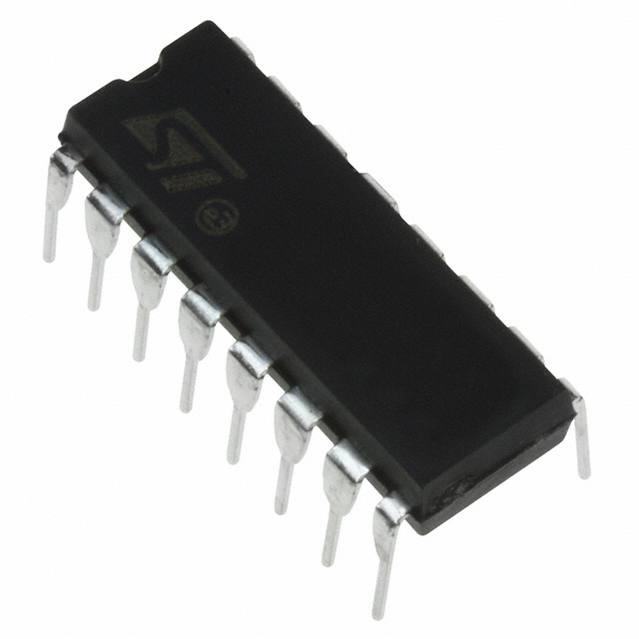

M74HC175B1R

四D型触发器与Clear QUAD D-TYPE FLIP FLOP WITH CLEAR

DESCRIPTION

The M54/74HC175 is a high speed CMOSQUAD D TYPE FLIP-FLOP WITH CLEAR fabricated in silicon gate CMOS technology. It has the same high speed performance of LSTTL combined with true CMOS low power consumption.

.HIGH SPEED

   tPD= 13 ns TYP. AT VCC=5V

.LOW POWER DISSIPATION

   ICC=4µA MAX. AT TA=25°C

.HIGH NOISE IMMUNITY

  VNIH=VNIL=28%VCCMIN.

.OUTPUT DRIVE CAPABILITY 10 LSTTL LOADS

.SYMMETRICAL OUTPUT IMPEDANCE

  |IOH|=IOL= 4 mA MIN.

.BALANCED PROPAGATION DELAYS

  tPLH=tPHL

.WIDE OPERATING VOLTAGE RANGE

  VCCOPR = 2 V TO 6 V

.PIN AND FUNCTION COMPATIBLE WITH 54/74LS175
