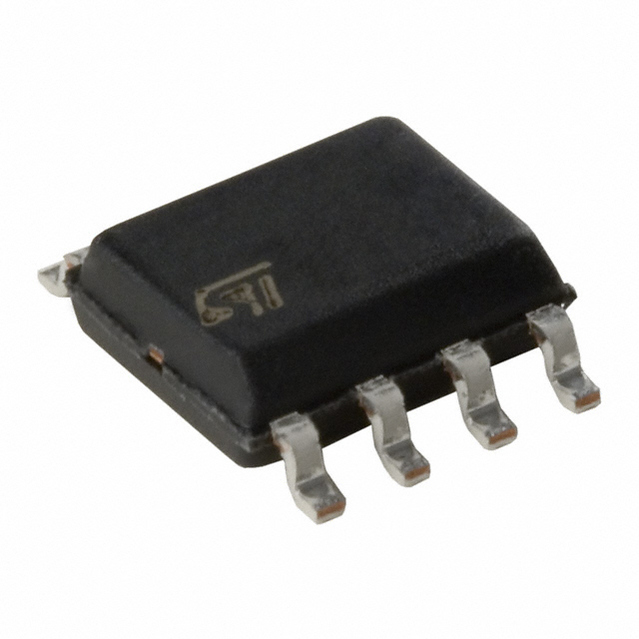

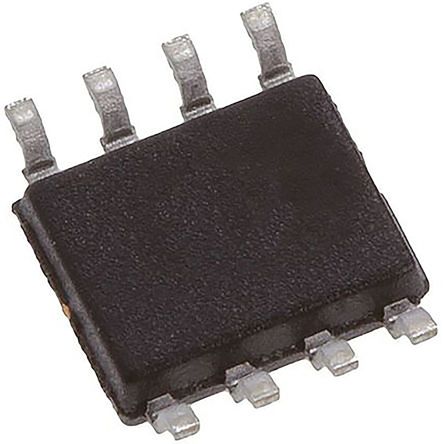

STMICROELECTRONICS MC34063ACD-TR 芯片, 直流/直流转换器, 100KHZ, SOIC-8
The is a monolithic Control Circuit which delivers the main functions for DC-DC voltage converting. The device contains an internal temperature compensated reference, comparator, duty cycle controlled oscillator with an active current limit circuit, driver and high current output switch. Output voltage is adjustable through two external resistors with a 2% reference accuracy. Employing a minimum number of external components, the MC34063A device series is designed for step-down, step-up and voltage-inverting applications.
- .
- Active current limiting
- .
- Output switch current in excess of 1.5A
- .
- 2.5mA Typical low quiescent current
输出接口数 1
输出电压 1.25V ~ 38V
输出电流 1.5 A
针脚数 8
静态电流 2.5 mA
开关频率 100 kHz
输入电压Max 40 V
输入电压Min 3 V
输出电压Max 38 V
输出电压Min 1.25 V
工作温度Max 70 ℃
工作温度Min 0 ℃
输入电压 3V ~ 40V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
长度 5 mm
宽度 4 mm
高度 1.25 mm
封装 SOIC-8
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power Management, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
