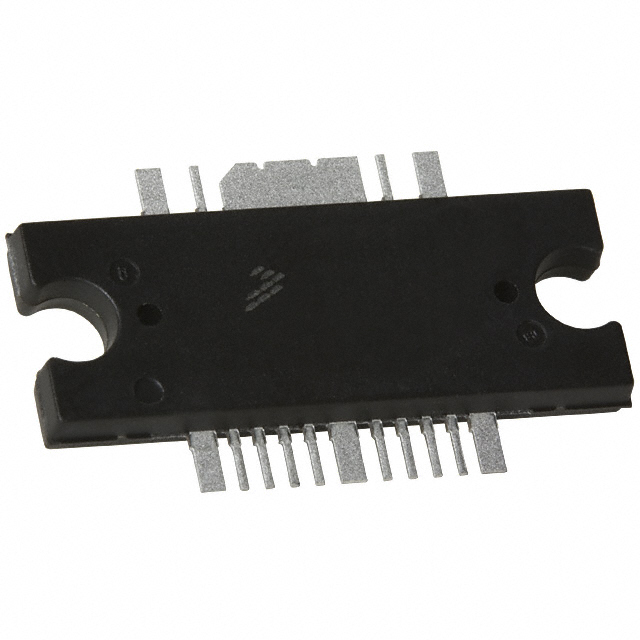

Trans RF MOSFET N-CH 65V 17Pin TO-272W T/R
Overview
The MW7IC2425NR1, MW7IC2425GNR1 and are designed primarily for CW large-signal output and driver applications at 2450 MHz. Devices are suitable for use in industrial, medical and scientific applications.
MoreLess
## Features
* Typical CW Performance: VDD = 28 Volts, IDQ1 = 55 mA, IDQ2 = 195 mA, Pout = 25 Watts CW, f = 2450 MHz
Power Gain: 27.7 dB
Power Added Efficiency: 43.8%
* Capable of Handling 10:1 VSWR, @ 28 Vdc, 2450 MHz, 25 Watts CW Output Power
* Qualified Up to a Maximum of 28 VDD Operation
* Integrated Quiescent Current Temperature Compensation with Enable/Disable Function
* Integrated ESD Protection
* 225°C Capable Plastic Package
* RoHS Compliant.
* In Tape and Reel. R1 Suffix = 500 Units per 44 mm, 13 inch Reel.
