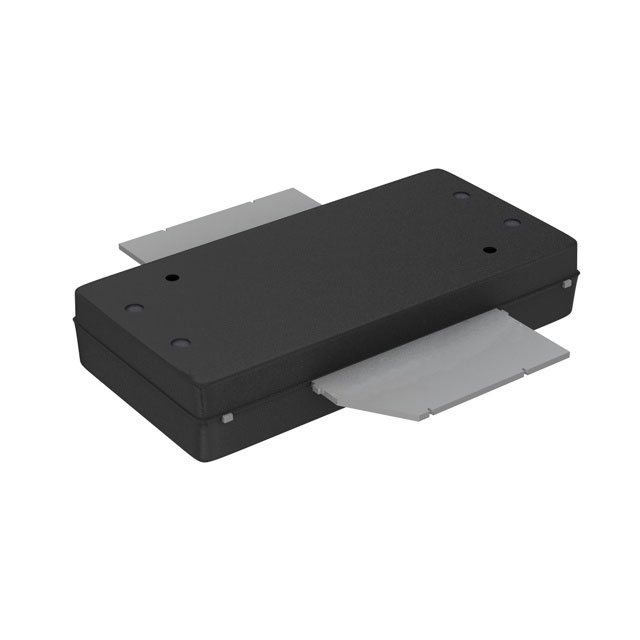

RF Power Transistor,2400 to 2500MHz, 250W, Typ Gain in dB is 14.7 @ 2450MHz, 32V, LDMOS, SOT1823
Overview
The MRF7S24250N 250 W CW RF power transistor is designed for industrial, scientific, medical ISM and industrial heating applications at 2450 MHz. This device is suitable for use in CW, pulse and linear applications. This high gain, high efficiency rugged device is targeted to replace industrial magnetrons and will provide longer life and easier servicing.
MoreLess
## Features
* Characterized with Series Equivalent Large-Signal Impedance Parameters
* Internally Matched for Ease of Use
* Qualified up to a Maximum of 32 VDD Operation
* Integrated High Performance ESD Protection
* Supported by the RF Power Tool
* RoHS Compliant
#### Typical Applications
* Industrial Heating and Drying
* Material Welding
* Plasma Lighting
* Scientific
* Medical: Skin Treatment, Blood Therapy, Electrosurgery
## Features RF Performance Tables
### Typical Performance
In 2400–2500 MHz reference circuit, VDD = 32 Vdc- .
- *Frequency
- .
- * | **Signal Type** | **Pin
- .
- * | **Gps
- .
- * | **ηD
- .
- * | **Pout
- .
- *
\---|---|---|---|---|---
2400| CW| 9.0| 14.5| 55.5| 255
2450| 9.0| 14.7| 54.8| 263
2500| 9.0| 14.3| 55.5| 242
### Load Mismatch/Ruggedness
**Frequency
MHz- .
- * | **Signal Type** | **VSWR** | **Pin
- .
- * | **Test
- .
- * | **Result**
\---|---|---|---|---|---
2450| CW| > 10:1
at all Phase Angles| 14
3 dB Overdrive| 32| No Device
Degradation
