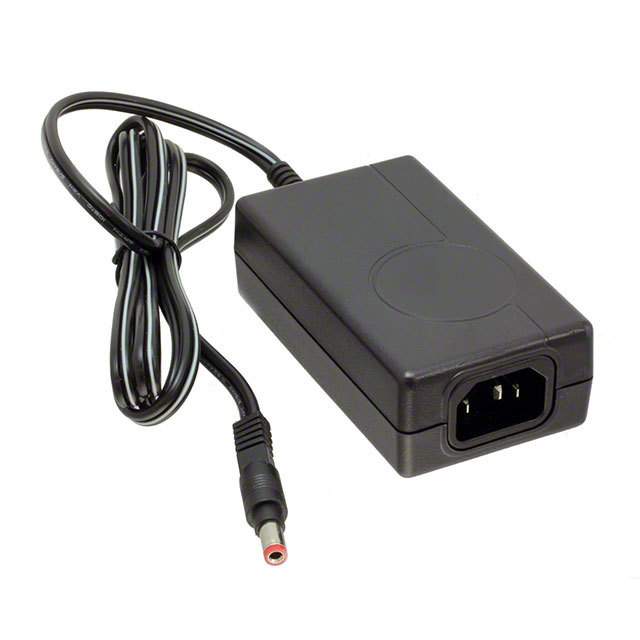

ME30A0503F01

ME30A 替代 MENB1030 30 W 5 V Level VI 输入 插座 桌面 适配器

A high performance AC to DC external power supply family designed for medical applications. The ME30A Medical Series low power external AC-DC power supplies are approved to safety EN/IEC/UL60601-1, 3rd edition with isolation levelswhich satisfy the 2 MOPP requirements and designed to UL/EN/IEC60601-1-2, 4th edition for EMC

.

. The ME30A Series models will operate at universal input range of 90 to 264Vac over the wide temperature range of -20°C to +50°C, delivering full rated output power up to +40°C and applicable output power derating at 50°C. These models are available in desktop and wall-plug versions, include an IP22 rating per IEC60529 for the enclosure, and output cable terminated at a variety of output connectors.

**Features:

* **Meets UL/EN/IEC60601-1-2, 4th edition for EMC*

**

* ** Approved to EN/IEC/UL60601-1, 3rd edition

**

* ** 2 MOPP input-output isolation

**

* **Meets DoE Efficiency Level VI Requirements

**

* ** No load input power

**

* ** Average Efficiency

**

* ** Up to 30W of AC-DC Power

**

* ** Universal Input 90-264Vac Input Range

**

* ** Desktop and Wall-Plug versions

**

* ** Meets EN55011/CISPR11, FCC Part 15.109

**

* **Class B Conducted & Radiated Emissions, with >6db margin

**

* **E-cap life of > 8 years

**

* **>1,000,000 hours MTBF

**

* ** IP22 Rated Enclosure

**

* ** 3 Year Warranty

**

**
