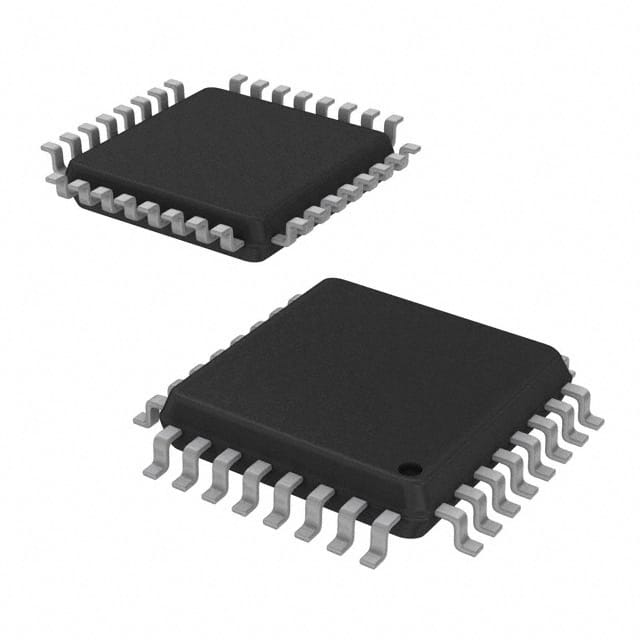

8位微控制器 -MCU 8 BIT, .25U SGF FLASH
Overview
The S08MP16 is a cost-effective 8-bit MCU that delivers safe, accurate and inexpensive motor control for a wide range of industrial and automotive applications. An ideal entry-level solution for brushless DC BLDC motor applications, it features an 8-channel pulse width modulator PWM/flextimer module providing hardware dead-time insertion, analog comparators, programmable gain amplifier and a 12-bit analog-to-digital converter ADC with PWM hardware triggering. Also offered is an independently clocked COP and cyclic redundancy check CRC engine providing clock failure protection and memory content validation for safety-critical applications implementing IEC60730.
MoreLess
## Features
### S08 Central Processor Unit CPU
* Up to 50 MHz HCS08 CPU @ 2.7–5.5V across a temperature range of -40°C to +105°C
* HCS08 instruction set with added BGND instruction
### On-Chip Memory
* Up to 16 KB flash read/program/erase over full operating voltage and temperature range
* Up to 1 KB RAM
* Security circuitry to prevent unauthorized access to RAM and flash contents
### Power Saving Modes
* Two low-power Stop modes and reduced power Wait mode
* Peripheral clock gating can disable clocks to unused modules
### Peripherals
* Analog-to-digital converter ADC
* 13 channels
* 12-bit resolution
* 2.5 µs conversion time
* Automatic compare function
* 1.7 mV/°C temperature sensor
* Internal bandgap reference channel
* Operation in stop 3 mode
* 1 x 2-ch. FlexTimer + 1 x 6-ch
* Supports up to 51.34 MHz operation
* Selectable input capture
* Output compare
* Edgeor center-aligned PWM
* Dead time insertion
* Fault inputs
* MTIM: simple 8-bit timer with four software-selectable clock sources and a programmable interrupt
* 3 x high-speed analog comparators HSACMP
* +ve and -ve inputs
* Separately selectable interrupt on rising and falling comparator output
* Filtering
* Windowing
* HSCMP1 and HSCMP2 outputs can be optionally routed to FTM1 modul
* Runs in stop3
* Programmable gain amplifier PGA
* Differential programmable gain amplifier with programmable gain x1, x2, x4, x8, x16 or x32
* 2 x programmable delay blocks PDB
* PDB1 synchronizes PWM with samples of ADC
* PDB2 synchronizes PWM with comparing window of analog comparators
* Independently clocked COP and cyclic redundancy check generator
### Development Support
* Single-wire background debug interface
* Breakpoint capability
* ICE debug module
* Three comparators and nine trigger modes
* Eight deep FIFO for storing change-of-flow addresses and event-only data
* Supports both tag and force breakpoints
### Product Longevity Program
* This product is included in ®.s product longevity program, with assured supply for a minimum of 15 years after launch
* This product is included in NXP®.s product longevity program, with assured supply for a minimum of 15 years after launch
