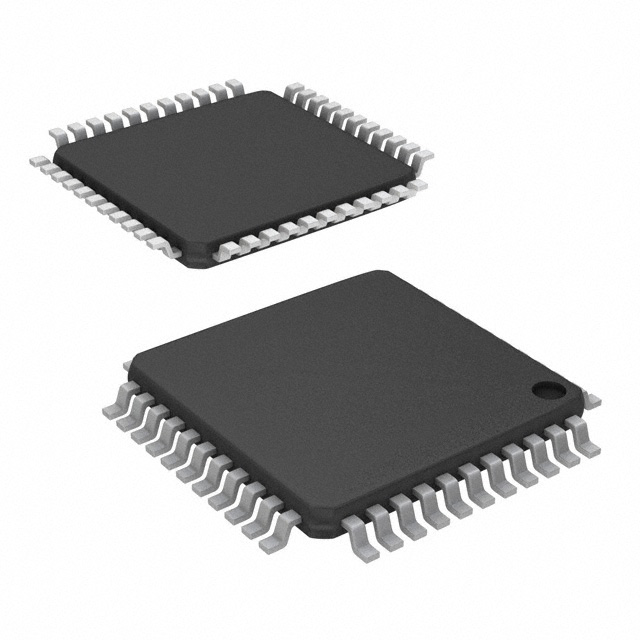

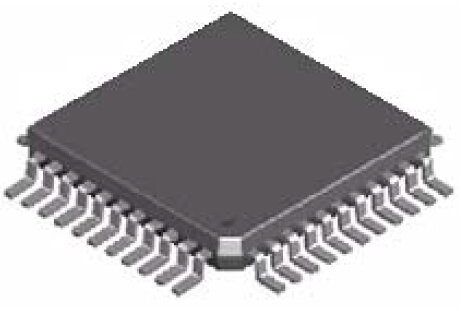

MCF51JM128EVLD

其他系列 50MHz 128K@x8bit 16KB

Overview

The MCF51JM family is part of the Flexis® microcontroller series, the connection point on Our Controller Continuum where 8-bit and 32-bit compatibility becomes a reality. The Flexis series of devices includes complementary families of 8-bit S08 and 32-bit V1 ColdFire® microcontrollers that have a common set of peripherals and development tools to deliver the ultimate in migration flexibility.

The 32-bit MCF51JM128 further extends the low-end of the ColdFire embedded USB controller family with up to 128 KB of flash memory, a full-speed USB 2.0 controller with host, device and on-the-go OTG support, an integrated CAN module and a 12-channel, 12-bit analog-to-digital converter ADC. The ColdFire JM family also features a hardware cryptographic acceleration unit CAU, a random number generator accelerator RNGA and several system protection features such as low-voltage detect and a computer operating properly COP module.

MoreLess

## Features

* Up to 50.33 MHz V1 ColdFire® core offering 2.7 to 5.5 volts across a temperature range of -40°C to +105°C

* Up to 128 KB flash read/program/erase over full operating voltage and temperature

* Up to 16 KB RAM with security circuit

* Four low-power modes

* Integrated peripherals:

* Dual-role USB OTG device supports USB in either device, host or OTG configuration

* Controller area network CAN

* Cryptographic acceleration unit CAU

* ADC 12-channel, 12-bit resolution

* Random number generator accelerator RNGA

* Low-voltage detection and a COP module

* 2 serial communications interface SCI

* 2 serial peripheral interface SPI

* 2 I²C

* Two 16 bit timers, 2/6-channel

* Up to 16 keyboard interrupts KBI

* Up to 66 general-purpose input/outputs GPIOs

* This product is included in ®.s product longevity program, with assured supply for a minimum of 10 years after launch
