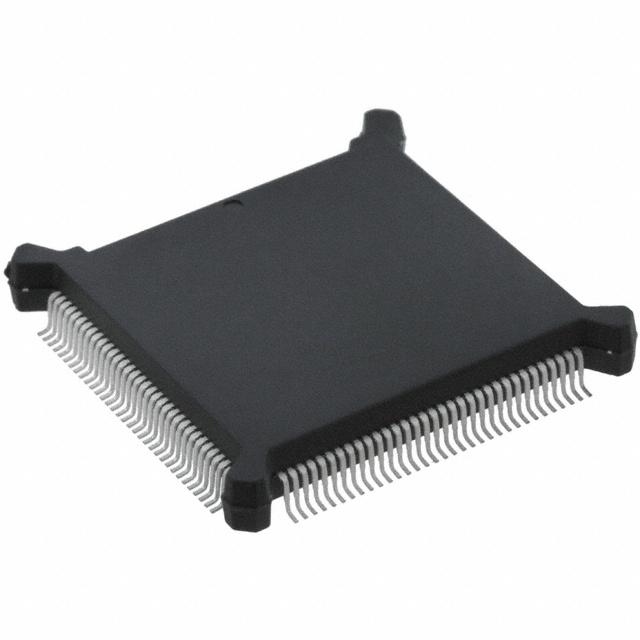

MCU 32Bit M68300 ColdFire RISC ROMLess 5V 132Pin PQFP Tray
Overview
The MC68332 ia s highly-integrated 32 bit microcontroller that combines high-performance data manipulation capabilities with powerful peripheral subsystems.This MCU is built up from standard modules that interface through a common intermodule bus IMB.
The MCU incorporates a 32 bit CPU CPU32, a system integration module SIM, a time processing unit TPU, a queued serial module QSM and a 2 Kbyte static RAM module with TPU emulation capability TPURAM.
MoreLess
## Features
Modular Architecture
* Central Processing Unit CPU32
* Upward Object Code Compatible
* New Instructions for controller Applications
* 32 Bit Architecture
* Virtual Memory Implementation
* Loop Mode of Instruction Execution
* Table Lookup and Interpolate Instruction
* Improved Exception Handling for Controller Applications
* Trace on change of flow
* Hardware breakpoint signal, Background Debugging Mode BDM
* Fully static operation
System Integration Module
* Dedicated Micro-Engine Operating Independently of CPU32
* 16 Independent Programmable Channels and Pins
* Any Channel can Perform Any Time Function
* Each Channel has Six or Eight 16 Bit Parameter Registers
* Each Timer Function May Be Assigned to More Than One Channel
* Two Timer Counter Registers with Programmable Prescalers
* Each Channel Can Be Synchronized to Either or Both Counters
* Selectable Channel Priority Levels
