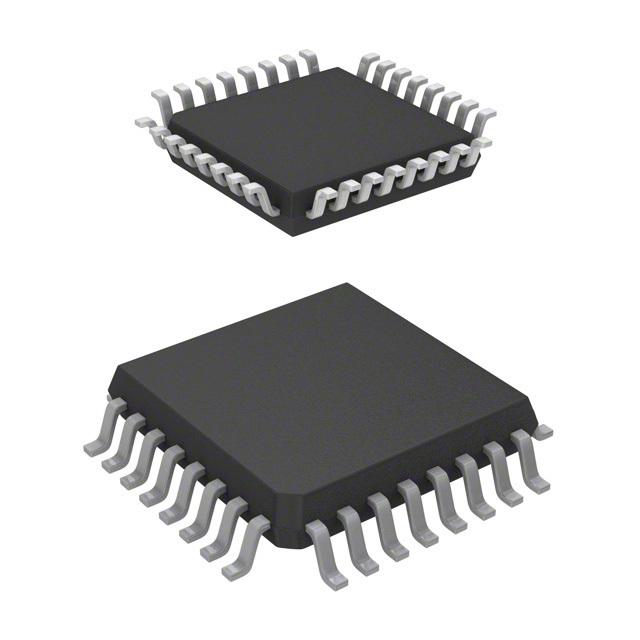

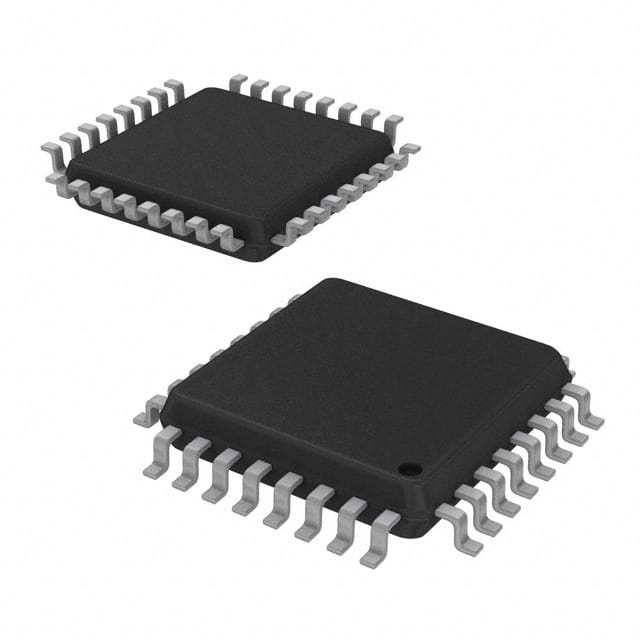

MC56F8013VFAER2

其他系列 32MHz 闪存：8K@x16bit

Overview

The ® 56F801X DSC family combines the power of digital signal processing and the functionality of a microcontroller on a single chip, with a flexible set of peripherals.

* Provides high-performance 16-bit solutions for motor control applications that require a greater number of pulse width modulators PWMs

* Delivers more control functionality with a smaller memory footprint than competing architectures

* Includes flexible power saving modes

* On-chip integration and ease of implementation help to speed development, lower component count, and significantly reduce system cost

* Supported by robust development tools to simplify and accelerate time-to-market

MoreLess

## Features

* DSP and MCU functionality in a unified, C-efficient architecture with up to 32 MIPS at 32 MHz core frequency

* Up to 16 KB of Flash memory

* Up to 4 KB of RAM

* Integrated peripherals:

* Up to 6-channel PWM module

* Two up to 4-channel 12-bit ADCs

* One serial communication interface SCI with LIN slave functionality

* One serial peripheral interface SPI

* One inter-integrated circuit I2C port

* Up to 26 GPIOs

* This product is included in Our product longevity program, with assured supply for a minimum of 10 years after launch
