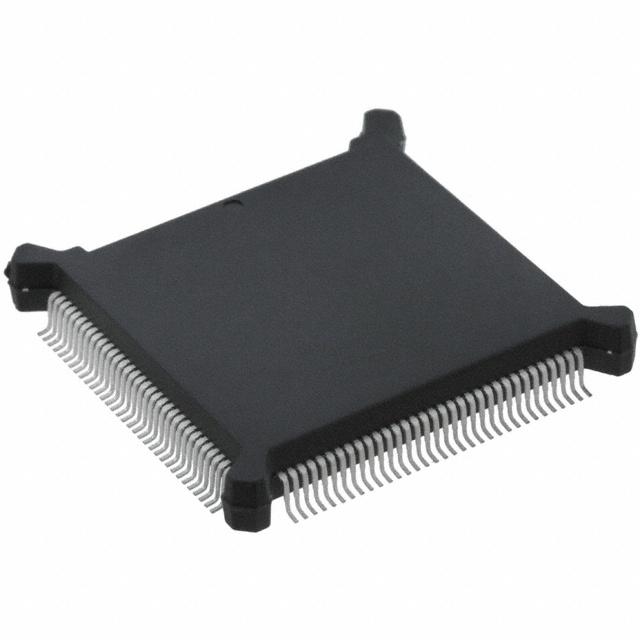

MC68332AVEH16

MCU 32Bit 68K/M683xx ColdFire RISC ROMLess 5V 132Pin PQFP Tray

Overview

The MC68332 ia s highly-integrated 32 bit microcontroller that combines high-performance data manipulation capabilities with powerful peripheral subsystems.This MCU is built up from standard modules that interface through a common intermodule bus IMB.

The MCU incorporates a 32 bit CPU CPU32, a system integration module SIM, a time processing unit TPU, a queued serial module QSM and a 2 Kbyte static RAM module with TPU emulation capability TPURAM.

MoreLess

## Features

Modular Architecture

* Central Processing Unit CPU32

* Upward Object Code Compatible

* New Instructions for controller Applications

* 32 Bit Architecture

* Virtual Memory Implementation

* Loop Mode of Instruction Execution

* Table Lookup and Interpolate Instruction

* Improved Exception Handling for Controller Applications

* Trace on change of flow

* Hardware breakpoint signal, Background Debugging Mode BDM

* Fully static operation

System Integration Module

* Dedicated Micro-Engine Operating Independently of CPU32

* 16 Independent Programmable Channels and Pins

* Any Channel can Perform Any Time Function

* Each Channel has Six or Eight 16 Bit Parameter Registers

* Each Timer Function May Be Assigned to More Than One Channel

* Two Timer Counter Registers with Programmable Prescalers

* Each Channel Can Be Synchronized to Either or Both Counters

* Selectable Channel Priority Levels
