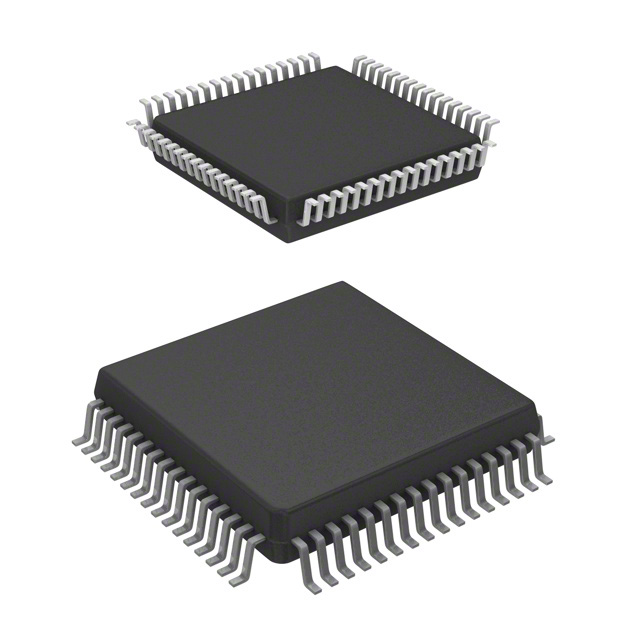

MCU 8Bit HC08 HC08 CISC 60KB Flash 3.3V/5V 64Pin PQFP T/R
Overview
The HC08GZ Family is a member of the low-cost, high-performance HC08 Family of 8-bit microcontroller units MCUs. All MCUs in the family use the enhanced M68HC08 central processor unit CPU08 and are available with a variety of modules, memory sizes and types, and package types.
MoreLess
## Features
* High-performance M68HC08 architecture optimized for C-compilers
* Fully upward-compatible object code with M146805, and M68HC05 Families
* Up to 2048 bytes of random-access memory RAM
* Up to 60 KB of on-chip FLASH memory
* 8-MHz internal bus frequency
* Up to 24 channels of 10-bit Analog to Digital Converter ADC
* Clock Generation Module CGM supporting 1-MHz to 8-MHz crystals
* In-system programming ISP
* MSCAN08 ® scalable controller area network controller implementing 2.0b protocol as defined in BOSCH specification dated September 1991
* System protection features: Optional computer operating properly COP reset, Low-voltage detection with optional reset and selectable trip points for 3.3-V and 5.0-V operation, Illegal opcode detection with reset and Illegal address detection with reset
