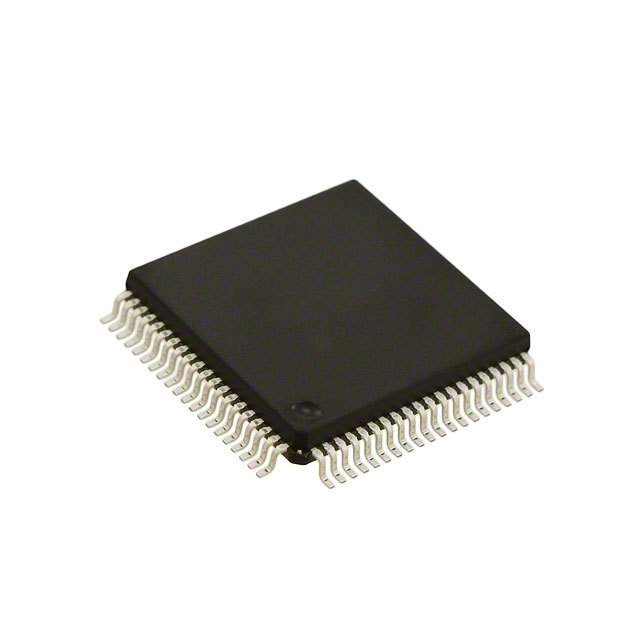

MC9S12GC64MFUE

其他系列 25MHz 64K@x8bit 4KB

Overview

The MC9S12GC128 MCU is a 16-bit device composed of the top on-chip peripherals for your automotive designs.

An on-chip bandgap-based voltage regulator Vreg generates the internal digital supply voltage VDD for a 2.97 V to 5.5 V external supply range.

The MC9S12GC128 has full 16-bit data paths throughout.

The inclusion of a phase-lock loop PLL circuit allows power consumption and performance to be adjusted to suit operational requirements.

A total of 50 I/O port pins and two input pins are available in the 80-pin package version. Up to 12 I/O port bits are available with wake-up capability from STOP or WAIT mode.

MoreLess

## Features

* 16-bit HCS12 CPU

* Asynchronous serial communications interface SCI

* Serial peripheral interface SPI

* Multiplexed external bus

* 128 KB flash EEPROM

* 4 KB RAM

* 8-channel ADC, 10-bit resolution

* 8 channel 16-bit TIM

* 6-channel 8-bit PWM
