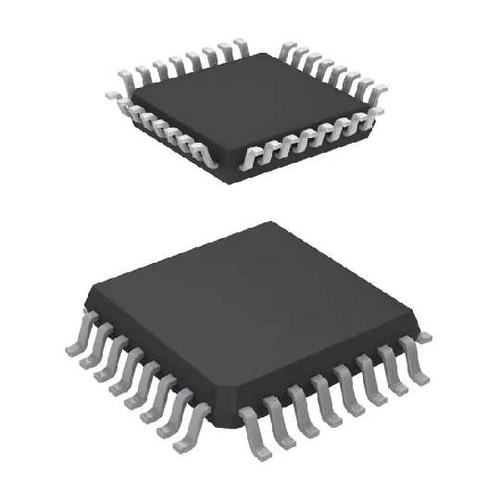

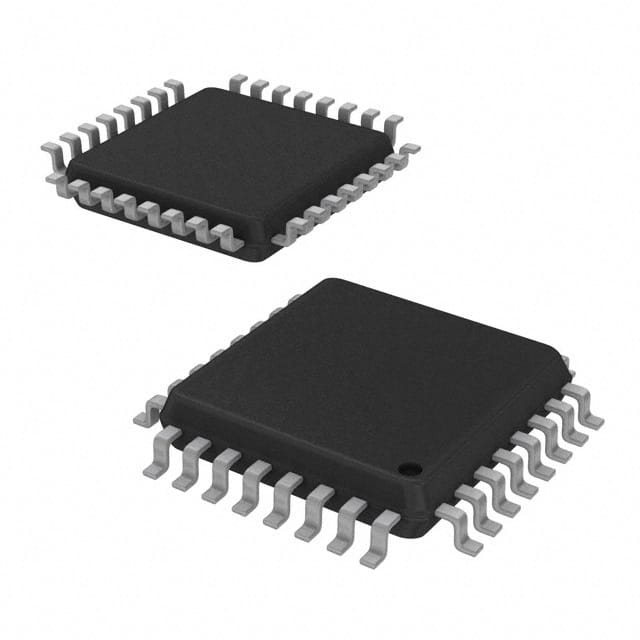

数字信号控制器, 32 MHz, 64 KB, 26 输入, I2C, SPI
Overview
® 56F803X digital signal controllers belong to the 56800E core-based DSC family. It combines digital signal processing and microcontroller functionalities on a single chip, with a flexible set of peripherals.
* Supports industrial and motor control, home appliances, inverters, smart sensors, fire and security systems, switched-mode power supply, power management, and medical monitoring
* On-chip integration and ease of implementation help to speed development, lower component count, and significantly reduce system cost
* Supported by robust development tools to simplify and accelerate time-to-market
MoreLess
## Features
* DSP and MCU functionality in a unified,C-efficient architecture with up to 32 MIPS at 32 MHz core frequency
* 64 KB 32K x 16 program Flash
* 8 KB 4K x 16 unified data/program RAM
* Integrated Peripherials:
* Controller area network CAN
* One 6-channel pulse width modulation PWM module
* Three programmable interval timers PITs
* Up to 53 GPIO lines
* Two up to 8-channel 12-bit analog-to-digital converters ADCs
* Two 12-bit digital-to-analog converters DACs
* This product is included in NXP®.s product longevity program, with assured supply for a minimum of 10 years after launch
## Features Comparison Table
### Family Comparison
| 56F8033| 56F8035| 56F8037| 56F8036
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
