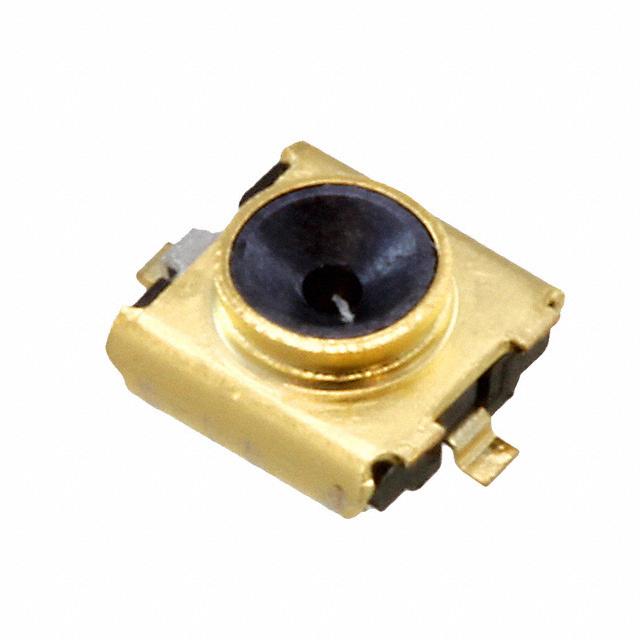

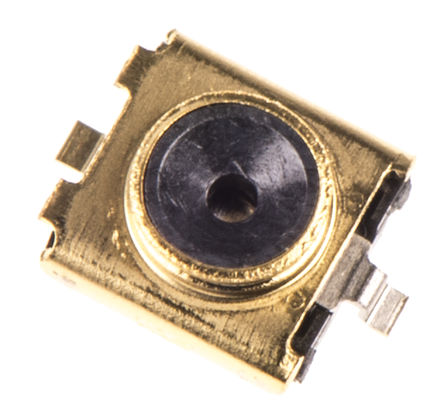

Hirose MS-166 超小型 面板安装 SMA 连接器 插座, 焊接端接

Hirose SMA adapter MS 166 series

### Hirose SMA adapter

Developed for inspection of high frequency circuits used in portable terminals.Verification of the circuit performance is accomplished by simply inserting the external plug in the board mounted receptacle.This action re-directs the circuit from normal condition to the plug side. Removing the plug restores circuit to its normal condition.

Low insertion loss 0.15 dB typical at 2.5 GHz not mated with the plug, 0.2 dB typical at 6 GHz not mated with the plug, 0.4 dB typical at 11 GHz

2.3 mm x 2.3 mm occupied board space

1.2 mm protrusion above the board

0.016 g. total weight without vacuum cap

50 mating/unmating cycles, with corresponding plug

Applicable frequencies range over a wide band from DC to 11 GHz

RoHS compliant
