ITT Cannon Receptacle Connector, Bayonet Coupling, Jam Nut, MKJ SeriesITT Cannon receptacle connectors with jam nut mounting are part of the Trinity MKJ Series range of lightweight miniature circular connectors. These receptacle connectors offer significant size and weight reductions over standard MIL-DTL-38999 circular connectors, offering lightweight aluminium shells with an cadmium olive plating, size 23 split tine contacts and a normal clocking position, overmolding and banding. These MKJ series receptacle connectors provide unparalled functionality for applications across many markets, including military vehicles, missile systems, weaponry, medical equipment test and diagnostic, aerospace and satellite systems amongst many.High contact density, crimp type: 22-28 AWG Current rating 5 Amps maximum Voltage rating 500 Vac RMS sea level Contact resistance 8 mΩ max Emi Shielding 40dB Attenuation, 100 MHz to 1000 MHz Aluminium shell, cadmium plate Complete with contacts ### 注For typical mating connectors see: 757-9657 , 757-9651 and range, utilises crimp tool 314-7607### ITT Cannon MKJ Series "Trinty" MIL-DTL-D38999 ConnectorsITT Cannon "Trinity" MKJ series miniature circular connectors offer significant size and weight reductions over standard MIL-DTL-38999 circular connectors, lightweight aluminium shells with a nickel or cad plating and size 23 split tine contacts. These MKJ series connectors provide unparalled functionality for applications across many markets, including military vehicles, missile systems, weaponry, medical equipment test and diagnostic, aerospace and satellite systems amongst many.

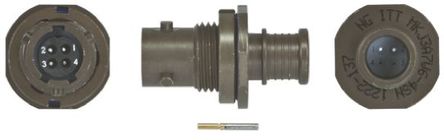

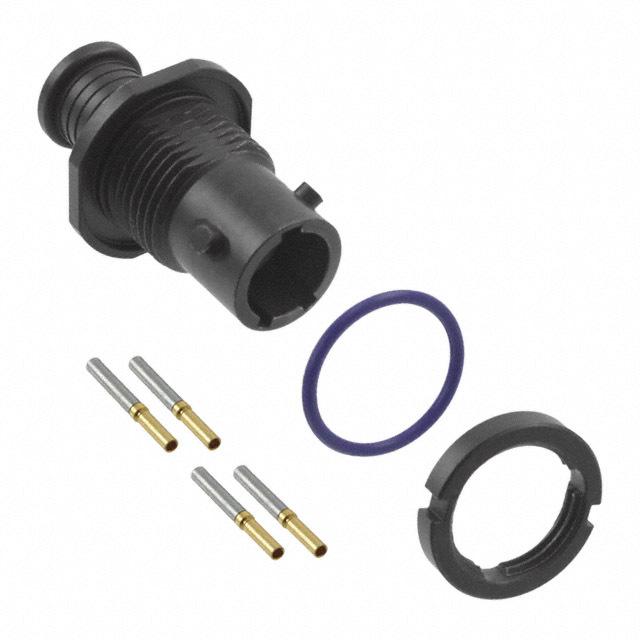

**ITT Cannon Receptacle Connector, Bayonet Coupling, Jam Nut, MKJ Series**
ITT Cannon receptacle connectors with jam nut mounting are part of the Trinity MKJ Series range of lightweight miniature circular connectors. These receptacle connectors offer significant size and weight reductions over standard MIL-DTL-38999 circular connectors, offering lightweight aluminum shells with an cadmium olive plating, size 23 split tine contacts and a normal clocking position, overmolding and banding. These MKJ series receptacle connectors provide unparalled functionality for applications across many markets, including military vehicles, missile systems, weaponry, medical equipment test and diagnostic, aerospace and satellite systems amongst many.
