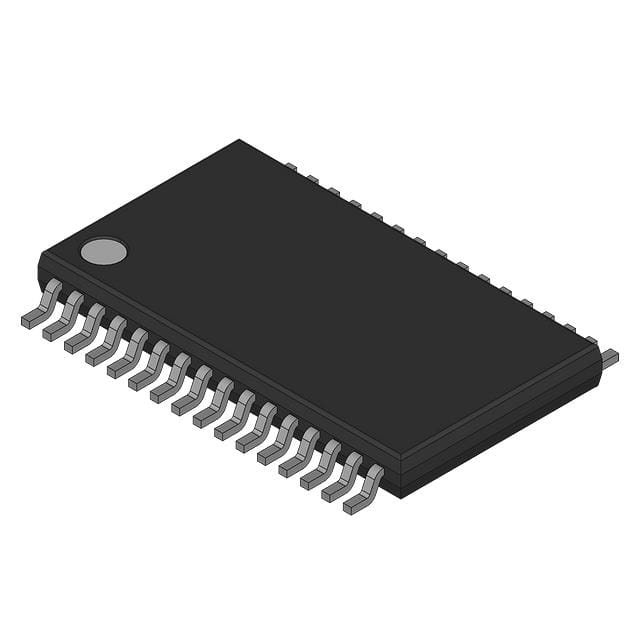

Power Switch Hi Side/Lo Side 0.6A Automotive 32Pin SOIC W Rail
Configurable Octal Serial Switch with Open Load Detect Current Disable
The 33879 device is an 8-output hardware configurable, high side / low side switch with 16-bit serial input control using the serial peripheral interface SPI. Two ofthe outputs may be controlled directly via a microcontroller for pulse-width modulation PWM applications. The 33879 incorporates SMARTMOS technology, with CMOS logic, bipolar/MOS analog circuitry, and DMOS power MOSFETs.
Features
• Designed to operate 5.5 V • 16-bit SPI for control and fault reporting, 3.3 V / 5.0 V compatible
• Outputs are current limited 0.6 A to 1.2 A to drive incandescent lamps
• Output voltage clamp, + 45 V low side and - 20 V high side during inductive switching
• On/Off control of open load detect current LED application
• Internal reverse battery protection on VPWR
• Loss of ground or supply will not energize loads or damage IC
• Maximum 5.0 μA IPWRstandby current at 13 V VPWR
• RDSON of 0.75 Ωat 25 °C typical
• Short-circuit detect and current limit with automatic retry
• Independent over-temperature protection
