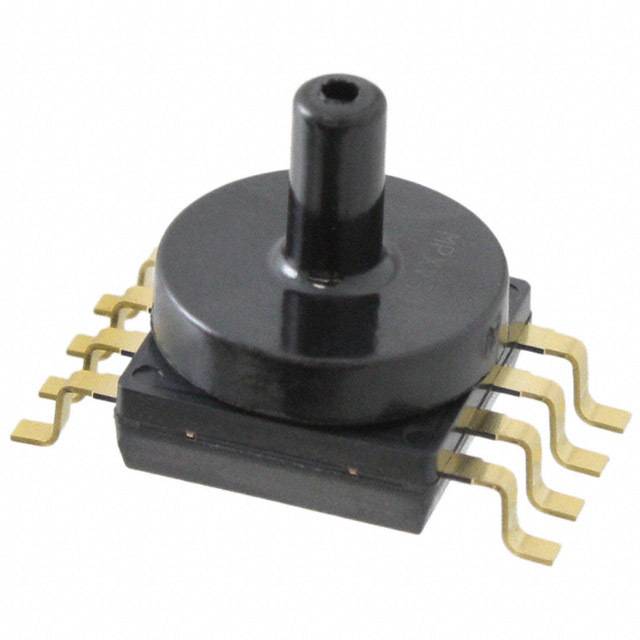

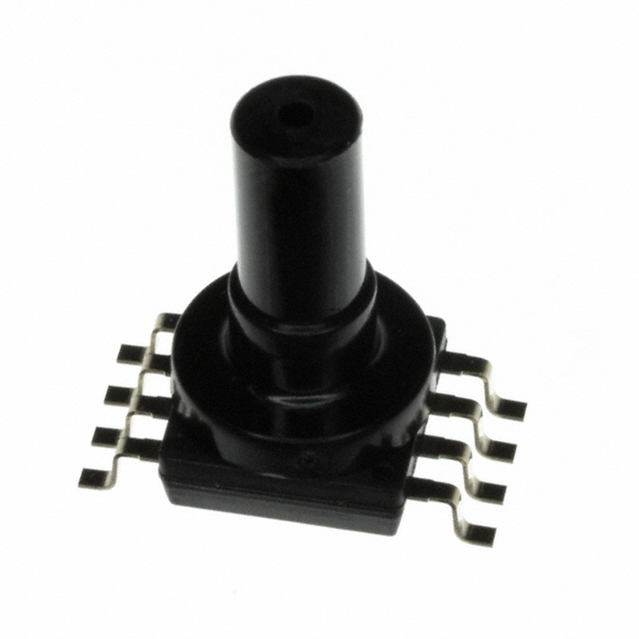

Pressure Sensor 1V to 4.9V 0KPa to 3.92KPa Vacuum 8Pin SMT Rail
The MPxx5004 series piezoresistive transducer is a state-of-the-art monolithic silicon pressure sensor designed for a wide range of applications, but particularly those employing a microcontroller or microprocessor with A/D
inputs. This sensor combines a highly sensitive implanted strain gauge with advanced micromachining techniques, thin-film metallization, and bipolar processing to provide an accurate, high level analog output signal that is proportional to the applied pressure.
Features
• 1.5% Maximum Error for 0 to 100 mm H2O over +10° to +60°C with Auto Zero
• 2.5% Maximum Error for 100 to 400 mm H2O over +10° to +60°C with Auto Zero
• 6.25% Maximum Error for 0 to 400 mm H2O over +10° to +60°C without Auto Zero
• Temperature Compensated over 10° to 60°C
• Available in Gauge Surface Mount SMT or Through-Hole DIP Configurations
• Durable Thermoplastic PPS Package
Application Examples
• Washing Machine Water Level
• Ideally Suited for Microprocessor or
Microcontroller-Based Systems
• Appliance Liquid Level and Pressure
Measurement
• Respiratory Equipment
