AFE General Purpose 2ADC 10Bit 3V 56Pin TQFN EP T/R

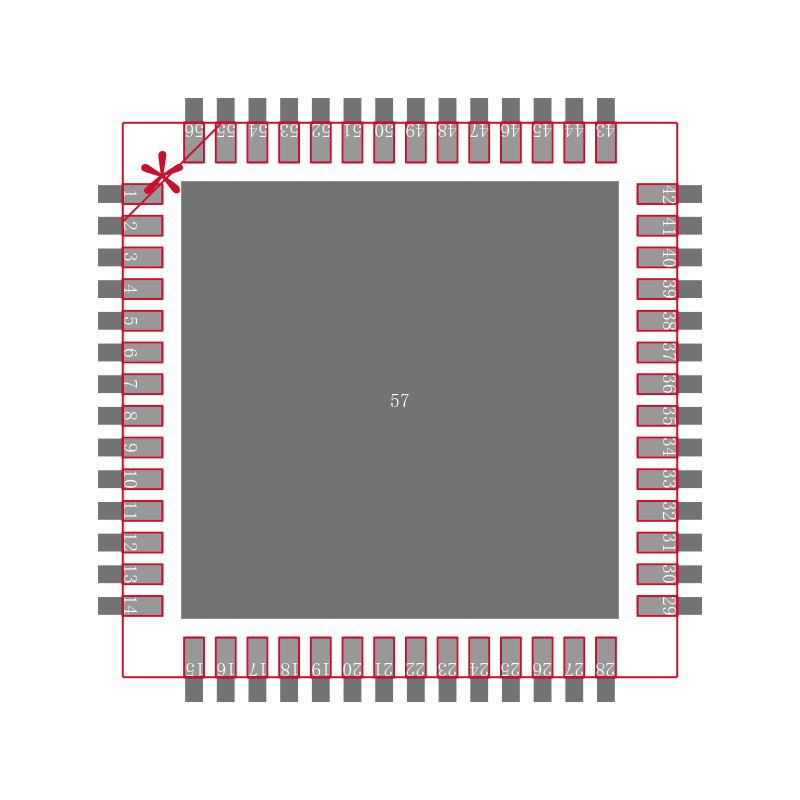

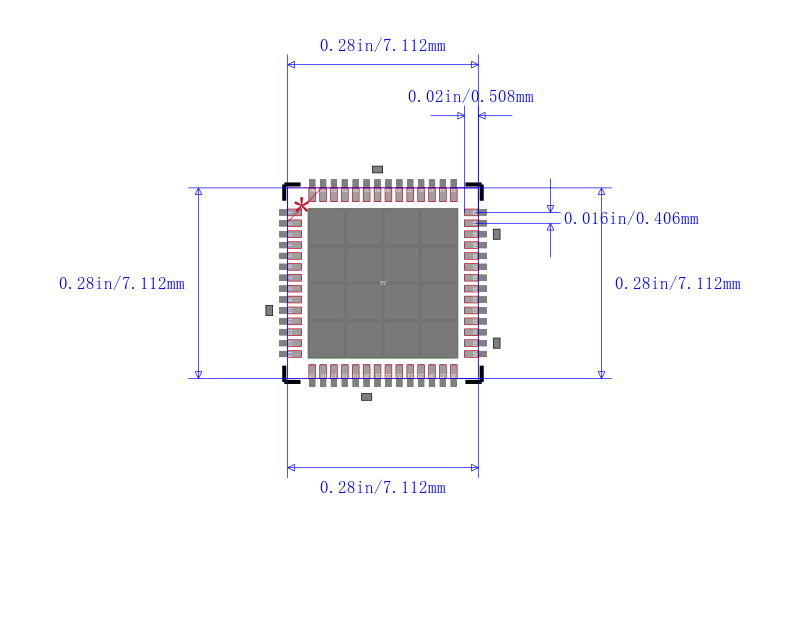

* Dual 10-Bit, 45Msps Rx ADC and Dual 10-Bit, 45Msps Tx DAC * Ultra-Low Power * 91.8mW at fCLK = 45MHz, FD Mode * 79.2mW at fCLK = 45MHz, Slow Rx Mode * 49.5mW at fCLK = 45MHz, Slow Tx Mode * Low-Current Standby and Shutdown Modes * Programmable Tx DAC Common-Mode DC Level and I/Q Offset Trim * Excellent Dynamic Performance * SNR = 54.1dB at fIN = 5.5MHz Rx ADC * SFDR = 70.3dBc at fOUT = 2.2MHz Tx DAC * Three 12-Bit, 1µs Aux-DACs * 10-Bit, 333ksps Aux-ADC with 4:1 Input Mux and Data Averaging * Excellent Gain/Phase Match * ±0.03° Phase, ±0.02dB Gain Rx ADC at fIN = 5.5MHz * Multiplexed Parallel Digital I/O * Serial-Interface Control * Versatile Power-Control Circuits * Shutdown, Standby, Idle, Tx/Rx Disable * Miniature 56-Pin Thin QFN Package 7mm x 7mm x 0.8mm
