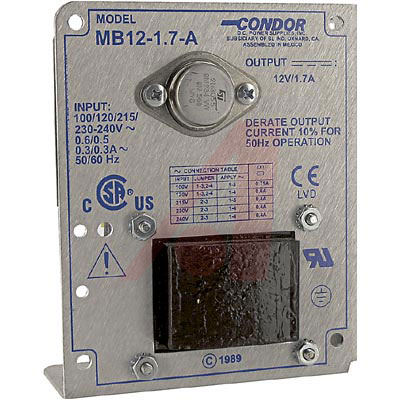

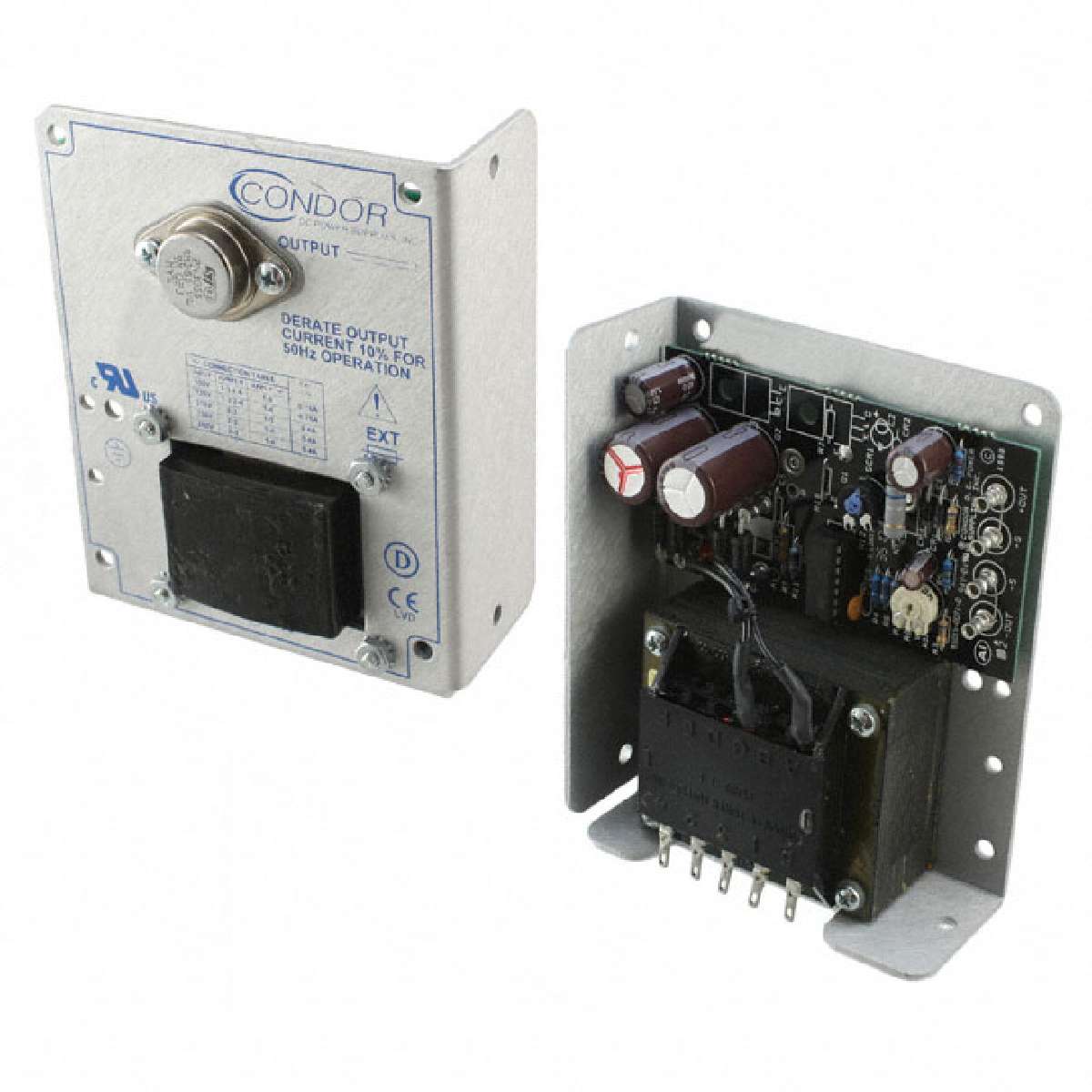

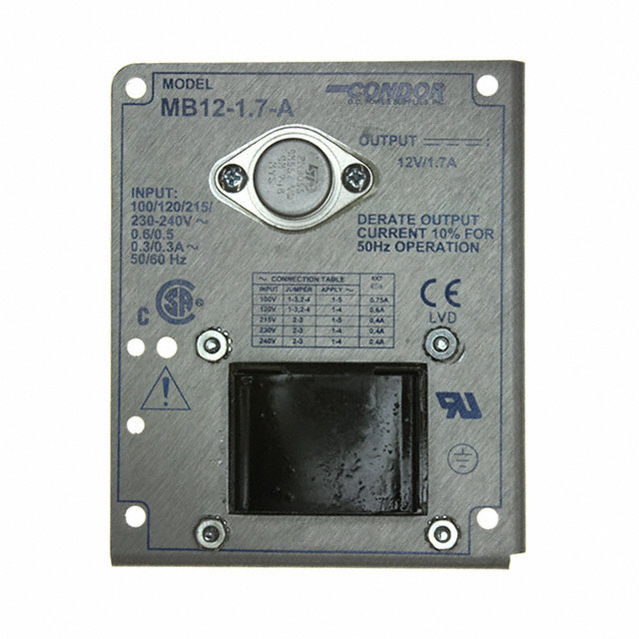

AC-DC CONVERTER 12V 20W
Commercial / Medical International + Linears
l
* UL1950 Approved without D3 Deviation
* World-Wide AC Input Ranges
* World-Wide Safety Standards
* Industry Standard Packages
* VDE/IEC Transformer Construction
* TÜV Approved, IEC 950
* CSA Approved, 22.2,234
* Two-Hour Burn-In with Cycling
* Three-Year Warranty
* Capacitors Have Highest C/V and Ripple Current Ratings in Industry
* Anti-Latchup Circuit on Duals and Triples
* MTBF of Over 200,000 Hours Per MIL Handbook 217D on Most Units
频率 47Hz ~ 63Hz
额定功率 20 W
输出接口数 1
输出电压 12 V
输出电流 1.7 A
输入电流 1.7 A
输出功率 20.4 W
输入电压Max 240 VAC
输入电压Min 100 VAC
输出电流Max 1.7 A
输出功率Max 20.4 W
额定功率Max 20 W
工作温度Max 50 ℃
工作温度Min 0 ℃
输入电压 100VAC ~ 240VAC
安装方式 Chassis
长度 4.88 in
宽度 4 in
高度 41.4 mm
重量 907 g
工作温度 0℃ ~ 50℃
产品生命周期 Active
包装方式 Box
制造应用 医用型
RoHS标准 Non-Compliant
含铅标准 Lead Free
