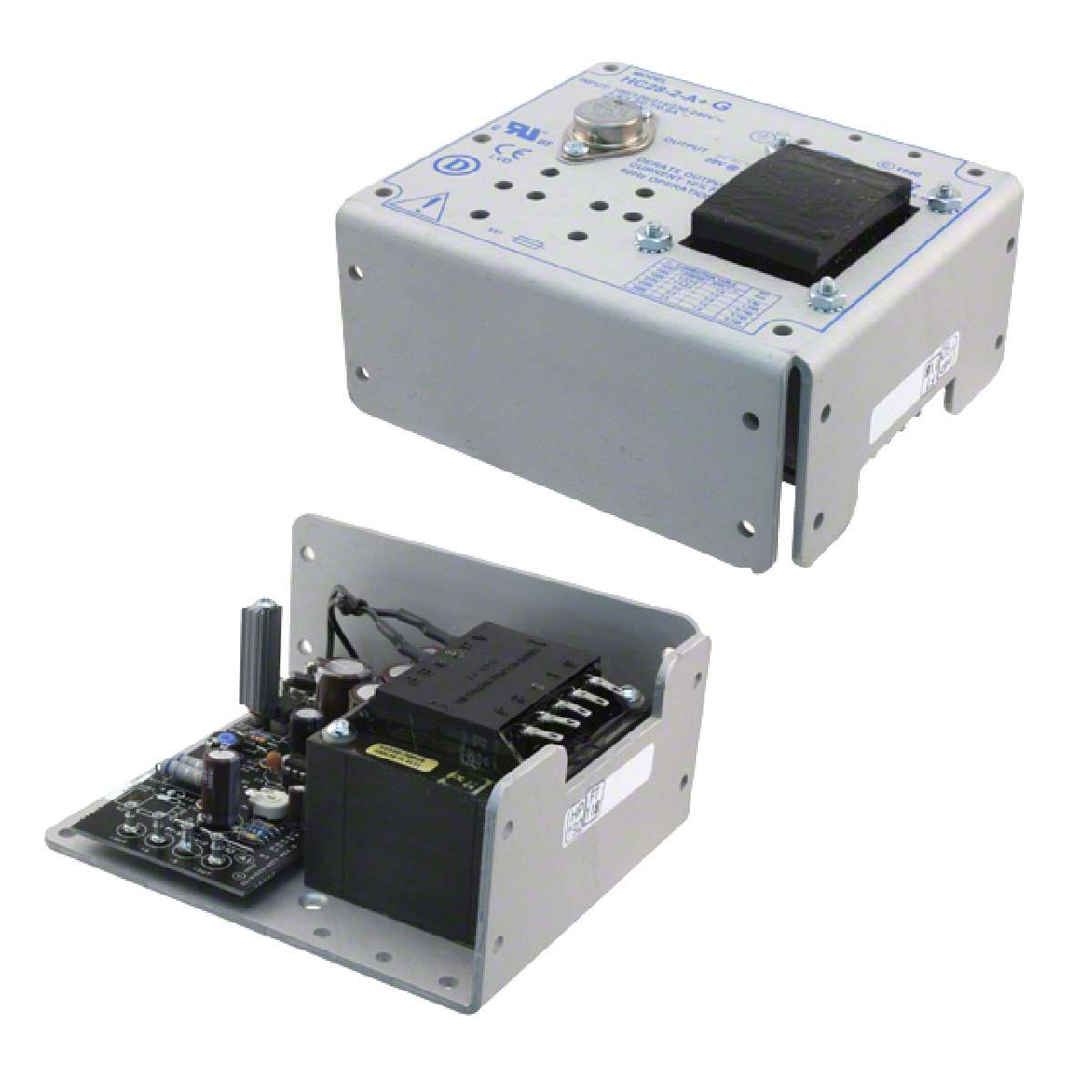

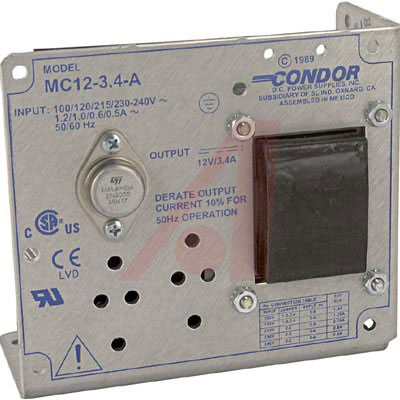

Power Supply; AC-DC; 12V; 3.4A; 100-240V In; Open Frame; Linear; Medical; 41W; MC Series
Commercial / Medical International + Linears
l
* UL1950 Approved without D3 Deviation
* World-Wide AC Input Ranges
* World-Wide Safety Standards
* Industry Standard Packages
* VDE/IEC Transformer Construction
* TÜV Approved, IEC 950
* CSA Approved, 22.2,234
* Two-Hour Burn-In with Cycling
* Three-Year Warranty
* Capacitors Have Highest C/V and Ripple Current Ratings in Industry
* Anti-Latchup Circuit on Duals and Triples
* MTBF of Over 200,000 Hours Per MIL Handbook 217D on Most Units
频率 47Hz ~ 63Hz
额定功率 41 W
输出接口数 1
输出电压 12 V
输出电流 3.4 A
输入电流 3.4 A
输出功率 40.8 W
输入电压Max 240 VAC
输入电压Min 100 VAC
输出电流Max 3.4 A
额定功率Max 41 W
输入电压 100VAC ~ 240VAC
安装方式 Chassis
长度 5.63 in
宽度 4.88 in
高度 2.5 in
重量 1.81 kg
工作温度 0℃ ~ 50℃
产品生命周期 Active
制造应用 医用型
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
