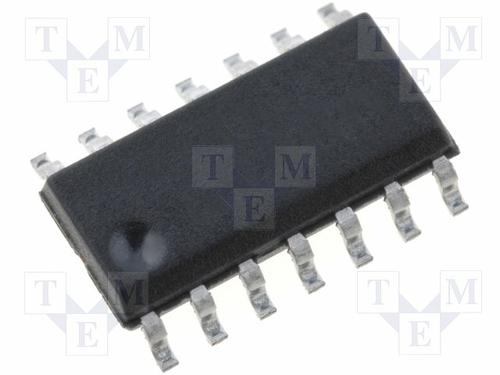

MCP25055-I/SL

2.7V~5.5V,1Mbps,CAN I/O扩展器,3Tx/2Rx

Description

The MCP2502X/5X devices operate as I/O expanders for a Controller Area Network CAN system, supporting CAN V2.0B active, with bus rates up to 1 Mb/s. The MCP2502X/5X allows a simple CAN node to be implemented without the need for a microcontroller.

Features

• Implements CAN V2.0B

\- Programmable bit rate up to 1 Mb/s

\- One programmable mask

\- Two programmable filters

\- Three auto-transmit buffers

\- Two message reception buffers

\- Does not require synchronization or configuration messages

• Hardware Features

\- Non-volatile memory for user configuration

\- User configuration automatically loaded on power-up

\- Eight general-purpose I/O lines individually selectable as inputs or outputs

\- Individually selectable transmit-on-pin change for each input

\- Four 10-bit, analog input channels with programmable conversion clock and VREF sources MCP2505X devices only

\- Message scheduling capability

\- Two 10-bit PWM outputs with independently programmable frequencies

\- Device configuration can be modified via CAN bus messages

\- In-Circuit Serial Programming™ ICSP™ of default configuration memory

\- Optional 1-wire CAN bus operation

• Low-power CMOS technology

\- Operates from 2.7V to 5.5V

\- 10 mA active current, typical

\- 30 µA standby current CAN Sleep mode

• 14-pin PDIP 300 mil and SOIC 150 mil packages

• Available temperature ranges:

\- Industrial I: -40°C to +85°C

\- Extended E: -40°C to +125°C
