BOURNS MOV-10D221K VARISTOR, METAL OXIDE, 360V, DISC 10MM 新
General Information

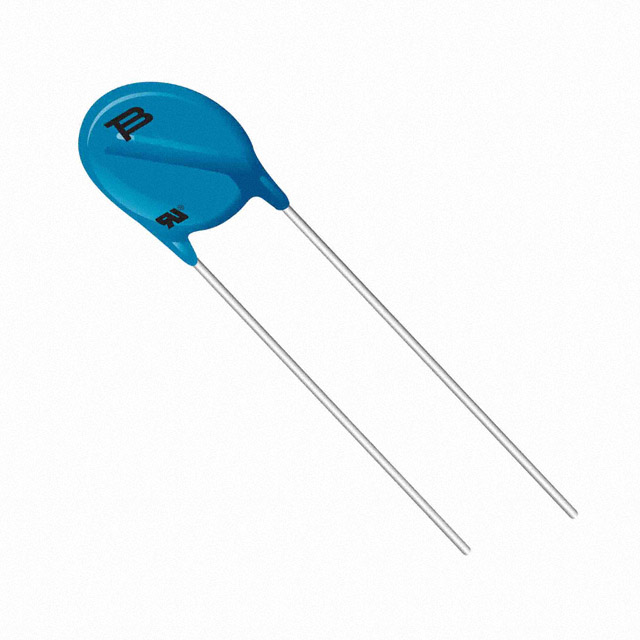

The MOV-10DxxxK Series of 10 mm radial leaded varistor devices protects against overvoltage transients such as lightning, power contact and power induction. The metal oxide varistors offer a choice of varistor voltages from 18 V to 820 V and Vrms voltages from 11 V to 510 V.
Features
■ High voltage rating
■ High current rating
■Bidirectional
■Surge protection
■ Fast response time
■RoHS compliant
Applications
■Power supplies
■Power systems
■Line voltage
■Telecom systems
■ White goods / appliances
额定电压DC 180 V
额定电压AC 140 V
电容 540 pF
电路数 1
钳位电压 360 V
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压DC Max 180 V
额定电压AC Max 140 V
安装方式 Through Hole
封装 Disc 10mm
宽度 7.2 mm
高度 15.5 mm
封装 Disc 10mm
工作温度 -40℃ ~ 105℃ TA
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MOV-10D221K Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
MOV-10D221KTR 伯恩斯 | 类似代替 | MOV-10D221K和MOV-10D221KTR的区别 |
SR221K10DS 台湾华科 | 功能相似 | MOV-10D221K和SR221K10DS的区别 |
