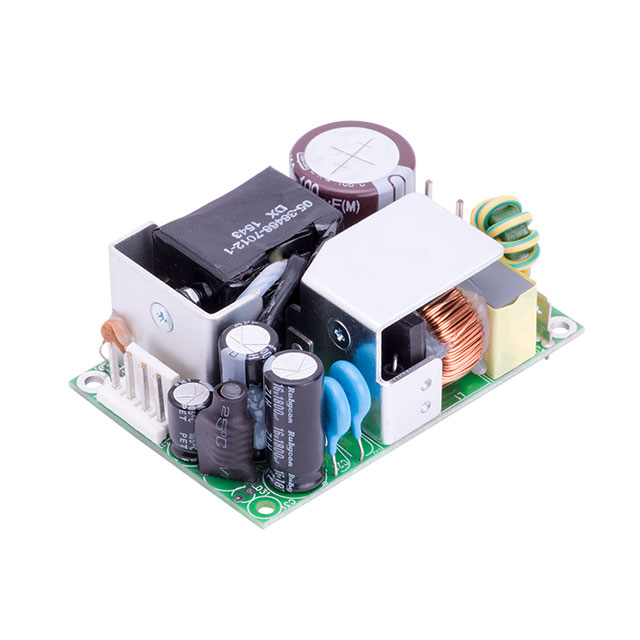

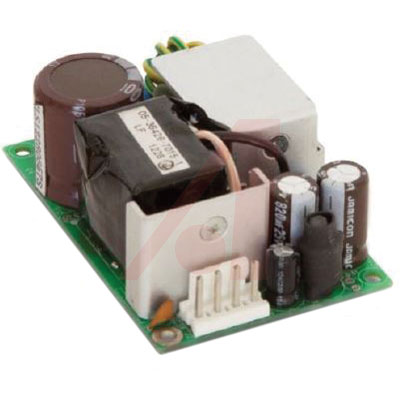

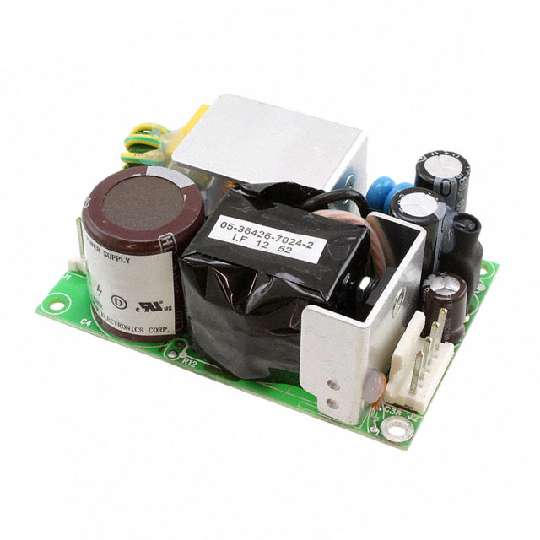

MB60S 系列 60 W 单输出 24 V 开放式 AC-DC 电源
The MB60S Series models provide a reliable power source in high power density in 2" × 3" × 1" package. Fully compliant to the applicable safety and EMC standards, these models will allow easy integration into many medical applications. All six models are CE marked to low voltage directive and approved to medical standards of IEC60601-1 3rd edition with 2 MOPP.
**Features:**
* Ultra Small Size of 2" × 3" × 1"
* For 1U Applications
* 60 W Convection Cooled
* Universal Input 90-264 VAC
* Approved to IEC60601-1, 3rd Edition with 2 MOPP
* Level V Efficiency Compliant Models
* Less Than 0.5 W No-Load Power Consumption
* 3 Year Warranty
* Optional LED Indicator for Power-On
额定功率 60 W
输出接口数 1
输出电压 24 V
输出电流 2.5 A
输出功率 60 W
隔离电压 4000 VAC
输入电压AC Max 264 V
输入电压AC Min 90 V
输出电流Max 2.5 A
输入电流Min 1.4 A
工作温度Max 80 ℃
工作温度Min -10 ℃
输入电压 90VAC ~ 264VAC
安装方式 Chassis
引脚数 7
长度 3 in
宽度 2 in
高度 1 in
工作温度 -10℃ ~ 80℃
产品生命周期 Active
制造应用 医用型
RoHS标准 RoHS Compliant
含铅标准 Lead Free
