MAX869LEEE

2A，限流型，高边P沟道开关，带有热关断 2A, Current-Limited, High-Side P-Channel Switch with Thermal Shutdown

General Description

The MAX869L P-channel load switch features an accurate user-set current limit and low on-resistance. This switch is designed to protect your power source from shorts and surges by limiting current and preventing the system supply from being pulled low. The input voltage range is 2.7V to 5.5V.

The MAX869L features a 2A, 45mΩ switch controlled by a logic signal. Current-limit accuracy is ±21%, and can be set from 400mA to 2.4A using a single resistor.

Features

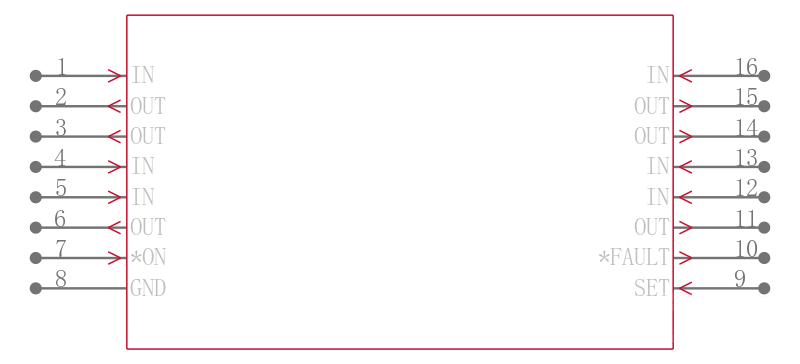

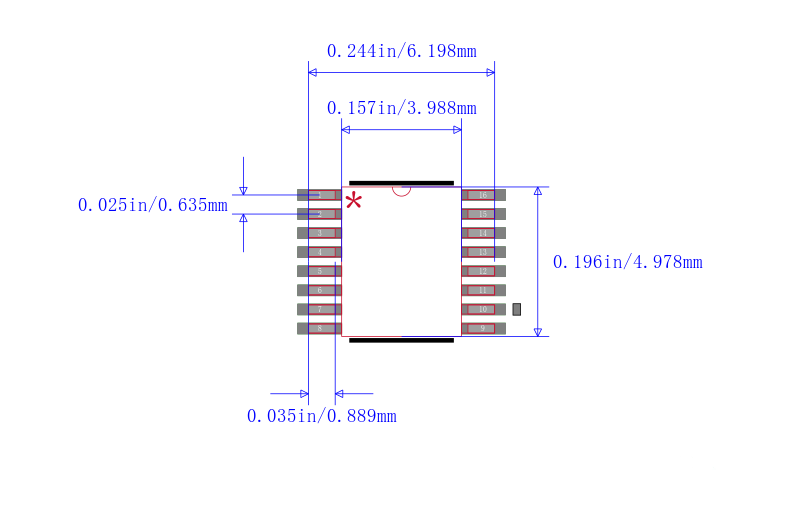

♦ Very Small Footprint 16-pin QSOP is the same size as an 8-pin SO

♦ Low Resistance: 45mΩ at 3V

♦ ±21%-Accurate, User-Set Current Limit

♦ 12µA typ Quiescent Current

♦ 0.01µA typ Shutdown Current

♦ 0.04µA typ Leakage to Output when Switch is Off

♦ 2.7V to 5.5V Input Range

♦ Thermal Shutdown

♦ FAULT Output

Applications

  Universal Serial Bus USB

  Notebook Computers

  Personal Communicators

  Palmtop Computers

  Hand-Held Instruments

  Portable Medical Instruments
