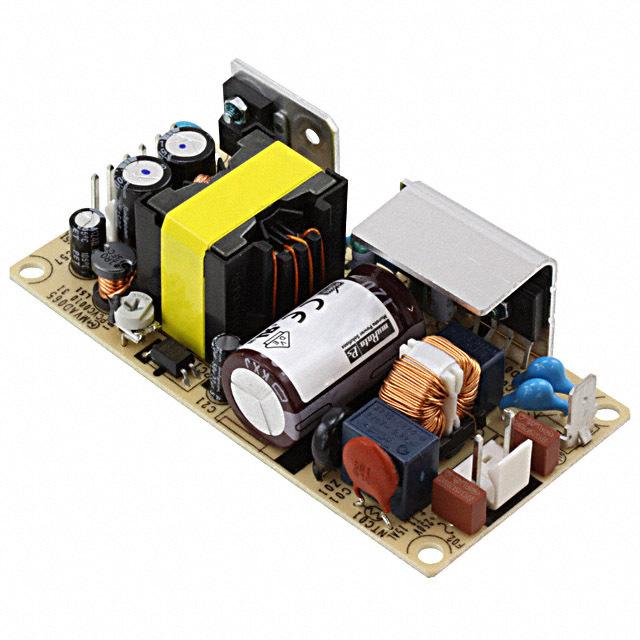

MURATA POWER SOLUTIONS MVAD065-12 开放式电源 交流/直流, 低型, 固定输出, 90 V, 264 V, 60 W, 12 V, 5 A
The is a 1-output 60W open-frame AC/DC Power Supply Converter utilize advanced component and circuit technologies to deliver high efficiency. It is designed for telecom and Industrial applications to satisfy 1U height design considerations. It offers universal AC input and compliance to worldwide safety and EMC standards. The power supply is protected against short circuit and reverse connection.
- .
- Compact high density
- .
- Remote sense
- .
- Less than 0.3W no load input power
- .
- 90% High efficiency
- .
- Convection-cooled operation up to 65W
- .
- Complies with 5000m altitude
- .
- Complies with ErP/Energy Star requirement excluding 5V output
- .
- Less than 74W input power
- .
- 2 x 4" Standard footprint
额定功率 60 W
输出接口数 1
输入电压DC 120V ~ 300V
输出电压 12 V
输出电流 5 A
输出功率 60 W
隔离电压 3 kV
输入电压DC Max 300 V
输入电压DC Min 120 V
输入电压AC Max 264 v
输入电压AC Min 90 v
输出电流Max 5 A
输入电流Min 1.4 A
输出功率Max 60 W
工作温度Max 50 ℃
工作温度Min -10 ℃
输入电压 90VAC ~ 264VAC
安装方式 PCB
引脚数 8
长度 101.6 mm
宽度 50.8 mm
高度 31.5 mm
工作温度 -10℃ ~ 70℃
产品生命周期 Last Time Buy
包装方式 Bulk
制造应用 工业, 医用, Medical, Communications & Networking, 电源管理, ITE（商业），医疗, Power Management, 通信与网络, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
