MS16M23F概述

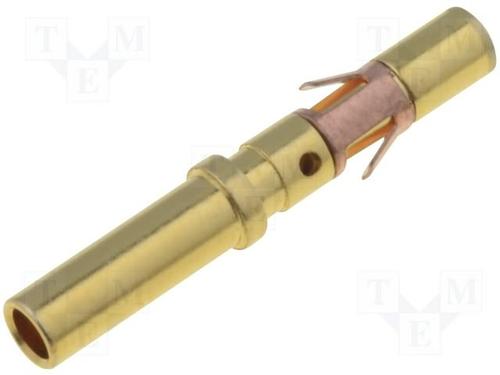

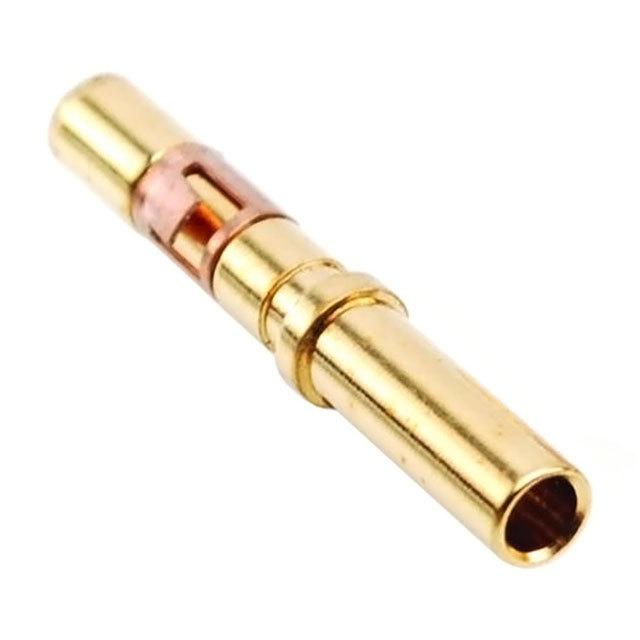

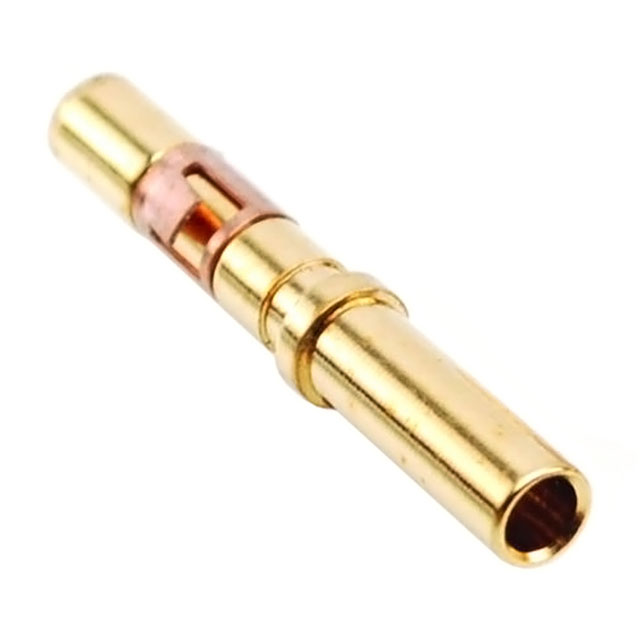

AMPHENOL SINE SYSTEMS  MS16M23F  CIRCULAR CONTACT, SKT, 18-16AWG, CRIMP 新

The Ecomate® RM Series is the connector of choice wherever there are demanding interconnect architectures. The multiway connectors are available in 7 shell sizes and 25 insert arrangements with a variety of wire gauge options. It is the high performance, cost effective solution of choice for our customers.

The Series includes two kinds of connectors: Standard Products and High Amperage. Standard Products are widely used, standardized connectors, while the High Amperage connectors are designed to endure large currents and high voltage. Typically used within hybrid electric vehicles, High Amperage connectors are available in single pole, high power arrangements featuring RADSOK® technology. RADSOK® products are offered exclusively by . Custom developed solutions are available in both styles.

Our Ecomate® RM products are designed to be a competitive alternative to other industry standard products while maintaining the best possible mechanical and environmental quality on the market. Our Ecomate® RM products feature IP67 environmental sealing qualities, rugged nickel plated aluminum outer shells and bayonet locking systems that require only a 1/3 turn. An audible locking “click" indicates proper installation.

* Male/Female: Male

* Shell Size: 14

* Number of Contacts: 12

* Contact Pin/Socket: Pin

* Contact Size: 16

* AWG: 16

* Amperage: 13

* Voltage: 300

* IP Rating: IP67

* Salt Spray: 48 H

MS16M23F中文资料参数规格
技术参数

极性 Female

线规 16AWG ~ 18AWG

触点电镀 Gold Flash

额定电流 13 A

工作温度Max 125 ℃

工作温度Min -40 ℃

接触电阻Max 6 mΩ

物理参数

触点材质 Copper Alloy

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

数据手册

在线购买MS16M23F
型号: MS16M23F
描述:AMPHENOL SINE SYSTEMS  MS16M23F  CIRCULAR CONTACT, SKT, 18-16AWG, CRIMP 新
替代型号MS16M23F
型号/品牌 代替类型 替代型号对比

MS16M23F

Amphenol 安费诺

当前型号

当前型号

RC16M25K

苏里奥

功能相似

MS16M23F和RC16M25K的区别

CF16SC19RF

苏里奥

功能相似

MS16M23F和CF16SC19RF的区别
