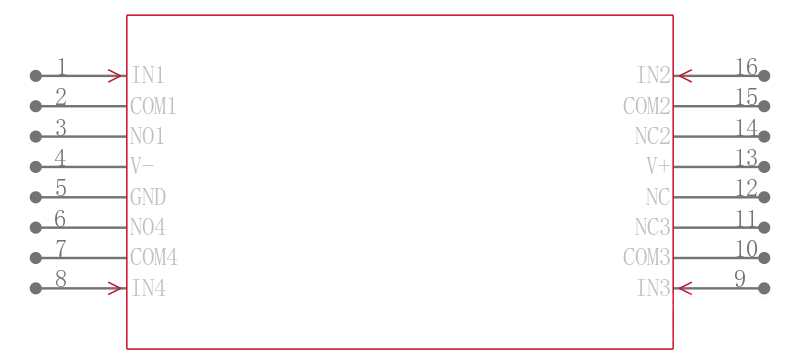

MAX314LCUE

10 з ，四路， SPST ， + 3V逻辑兼容模拟开关 10 з, Quad, SPST, +3V Logic-Compatible Analog Switches

General Description

Maxim’s MAX312L/MAX313L/MAX314L analog switch es feature low on-resistance 10Ω max and 1.5Ω on resistance matching between channels. These switches are +3V logic compatible when powered from ±15V or +12V supplies. The switches conduct equally well in either direction, and offer low leakage over temperature 2.5nA at +85°C.

Features

♦ +3V Logic-Compatible Digital Inputs

   VIH = 2.0V

   VIL = 0.8V

♦ Pin Compatible with MAX312/MAX313/MAX314 and DG411/DG412/DG413

♦ Low On-Resistance 10Ω max

♦ Guaranteed RON Match Between Channels 1.5Ω max

♦ Guaranteed RON Flatness over Specified Signal Range 2Ω max

♦ Crosstalk > 96dB at 20kHz

♦ Single-Supply Operation: +4.5V to +36V

  Dual-Supply Operation: ±4.5V to ±20V

♦ Rail-to-Rail® Signal Handling

Applications

  Test Equipment

  Communication Systems

  PBX, PABX Systems

  Audio Signal Routing

  Avionics

  Sample-and-Hold Circuits

  Data-Acquisition Systems

  xDSL Modems
