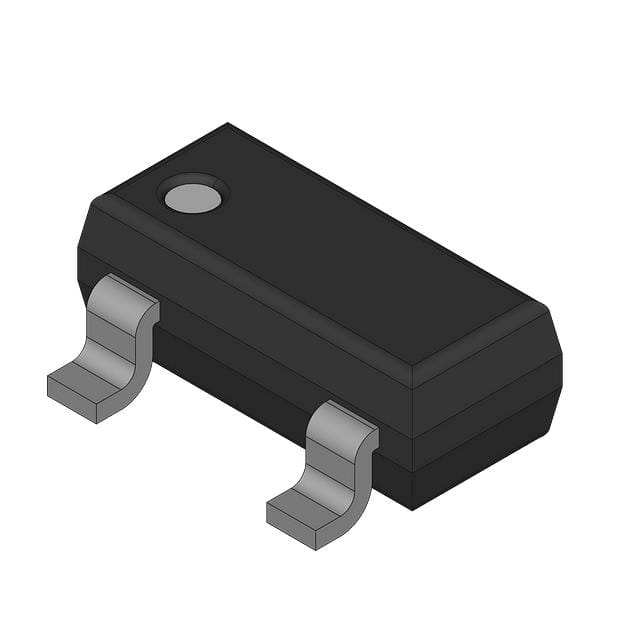

MAX6375UR23-T

3引脚，超低功耗SC70 / SOT23电压检测器 3-Pin, Ultra-Low-Power SC70/SOT23 Voltage Detectors

General Description

The MAX6375–MAX6380 are ultra-low-power circuits used for monitoring battery, power-supply, and regulat ed system voltages. Each detector contains a precision bandgap reference, comparator, and internally trimmed resistors that set specified trip threshold voltages. These devices provide excellent circuit reliability and low cost by eliminating external components and adjustments when monitoring nominal system voltages from 2.5V to 5V.

Features

♦Ultra-Low 500nA Supply Current MAX6375/MAX6376/MAX6377

♦Thresholds Available from 2.20V to 4.63V in Approximately 100mV Increments

♦±2.5% Threshold Accuracy Over Temperature

♦Low Cost
