RS-232接口集成电路 15kV ESD-Protected 230kbps RS-232 LD/Rc
完全版 收发器 3/3 RS232 16-SSOP
得捷:
IC TRANSCEIVER FULL 3/3 16SSOP
贸泽:
RS-232接口集成电路 15kV ESD-Protected 230kbps RS-232 LD/Rc
安富利:

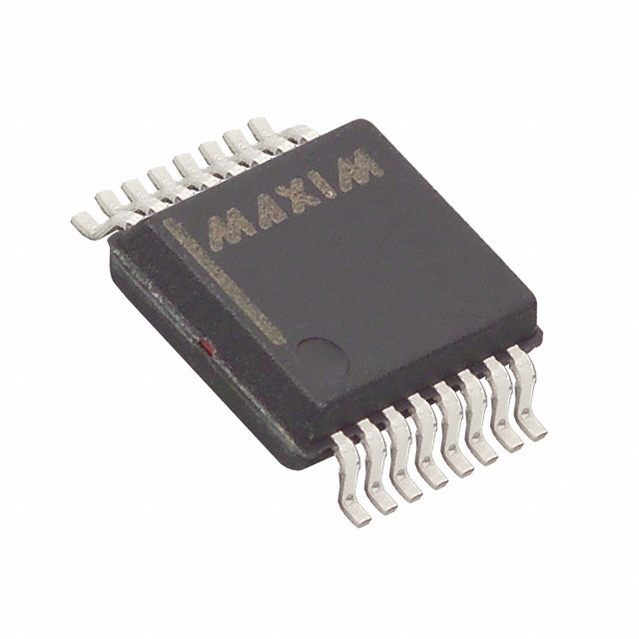

The MAX1406 is an RS-232 IC designed to meet the stringent electrostatic discharge ESD requirements of the European community. All transmitter outputs and receiver inputs are protected to ±15kV using IEC 1000-4-2 Air-Gap Discharge, ±8kV using IEC 1000-4-2 Contact Discharge, and ±15kV using the Human Body Model.The MAX1406 has three RS-232 transmitters and three RS-232 receivers, and is optimized for operation in printer, modem, and telecom applications. It is guaranteed to run at data rates up to 230kbps, providing compatibility with popular software for communicating with personal computers. Power-supply current is less than 500µA for IDD and ISS, and less than 1mA for ICC.The MAX1406 is pin and functionally compatible with the industry-standard MC145406, so existing designs can instantly become Electromagnetic Compatibility EMC compliant. The MAX1406 is available in DIP and SO packages, and in a tiny SSOP that reduces board space.
