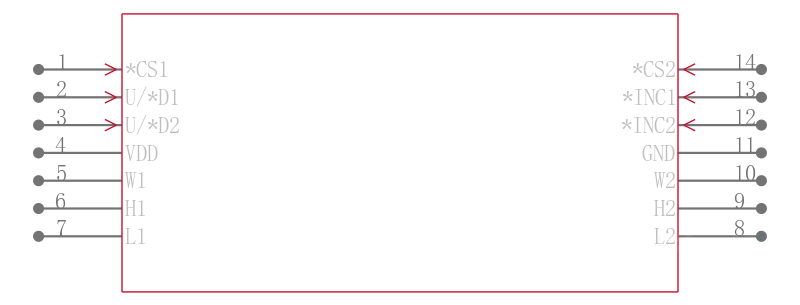

MAX5455EUD

双路， 256抽头，增/减接口，数字电位器 Dual, 256-Tap, Up/Down Interface, Digital Potentiometers

General Description

The MAX5450–MAX5455 are a family of dual digital potentiometers that perform the same function as a mechanical potentiometer or variable resistor. The MAX5451/MAX5453/MAX5455 have two 3-terminal potentiometers and the MAX5450/MAX5452/MAX5454 have two 2-terminal variable resistors. The MAX5450–MAX5455 operate from a +2.7V to +5.5V single-supply voltage and use an ultra-low supply current of 0.1µA. These devices consist of two fixed resistors each

with 256 digitally-controlled wiper contacts. The convenient power-on reset POR sets the wiper to midscale position at power-up and the easy-to-use up/down interface allows glitchless switching between resistor taps. Six inputs control the 14-pin MAX5451/MAX5453/MAX5455 potentiometers. Four inputs control the 10-pin MAX5450/MAX5452/MAX5454 variable resistors.

Features

♦Small-Footprint Packages

  10-Pin µMAX MAX5450/MAX5452/MAX5454

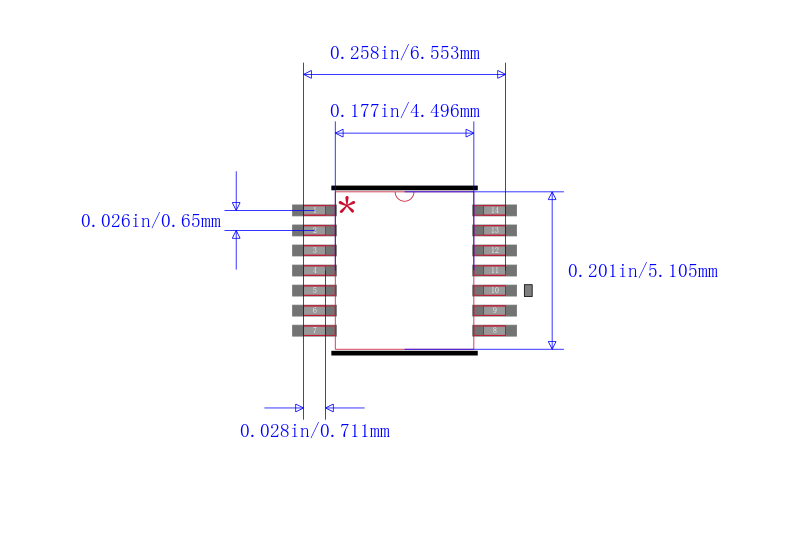

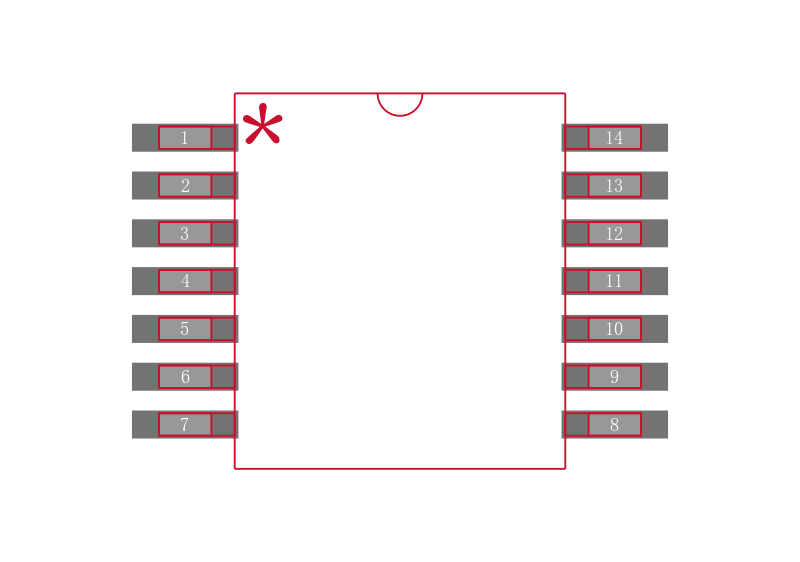

  14-Pin TSSOP MAX5451/MAX5453/MAX5455

♦256-Tap Positions

♦Independent Up/Down Potentiometer ControlsMAX5451/MAX5453/MAX5455

♦Ultra-Low 0.1µA Supply Current

♦+2.7V to +5.5V Single-Supply Operation

♦Low 35ppm/°C End-to-End Temperature Coefficient

♦Power-On Reset Sets Wiper to MidscalePosition 127

♦Glitchless Switching Between the Resistor Taps

♦10kΩ, 50kΩ, 100kΩResistance Values

Applications

Mechanical Potentiometer Replacement

Low-Drift Programmable-Gain Amplifier PGA

Volume Control

LCD Screen Adjustment

Adjustable Voltage References

Adjustable Linear Regulators

Programmable Filters, Delays, Time Constants

Impedance Matching
