MKDS 3/3-5,08

PHOENIX CONTACT  MKDS 3/ 3-5,08  线至板接线端子, 3 路, 400 V, 24 A, 24 AWG, 12 AWG, 4 mm²

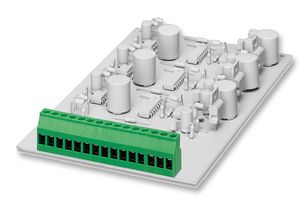

The MKDS 3/ 3-5, 08 from Contact is a through hole, 3 position PCB terminal block with 5.08mm lead spacing. Terminal block is made of PA insulating material and suitable for wire size ranging from 24AWG to 12AWG.

.

Dimension of terminal block is 11.21mm x 15.24mm x 23mm L x W x H

.

Green colour terminal block

.

Sn solder pin surface

.

Hole diameter of 1.3mm

.

UL94 V-0 inflammability rating

.

CSA, SEV, GL, CCA, EAC, UL, RS, IECEE CB scheme, cUL and cULus recognized

.

Screw connection

.

Right angle wire orientation
